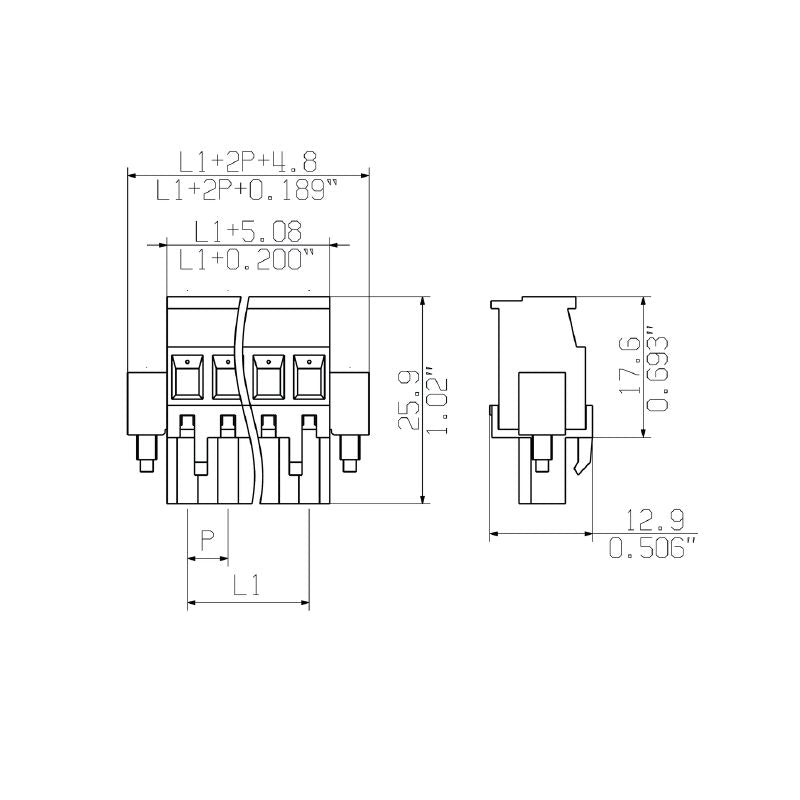

2647900000 - 21-Pole 5.08mm Electrical Connector, 90° Angle, 630V Rated (Pack of 18)

Description:

Introducing the CPS 508/21/90F SN GN BX, a highly dependable electrical connector crafted for effective field connections This connector adheres to IEC standards, supporting voltages of up to 630 V and current ratings of 22 A It accommodates wire sizes from 02 to 4 mm² and meets UL specifications for 300 V and 18 A, allowing for wire gauges spanning AWG 26 to AWG 14 This product comes in boxes, weighing in at a net total of 43.

85 g Featuring a clamping yoke connection type, it has a pitch of 508 mm and includes a conductor outlet angled at 90 degrees, with a total of 21 poles arranged in a single row The tightening torque requirement ranges from 05 to 055 Nm, ensuring secure connections Note that it is designed exclusively for use with OMNIMATE basic products.

Features and Benefits:

•Field connection capability.

•Wiring method features clamping yoke connection.

•Single-row configuration with 21 poles.

•Compact size with a pitch of 5.08 mm and 90° conductor outlet.

•Suitable for various conductor types and gauges.

Specifications:
