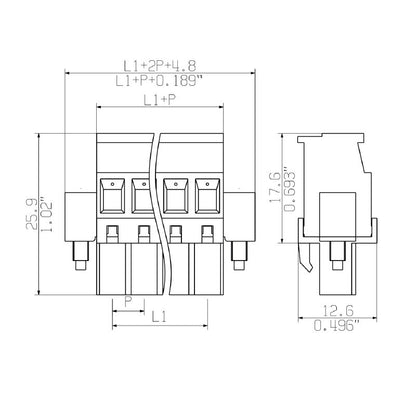

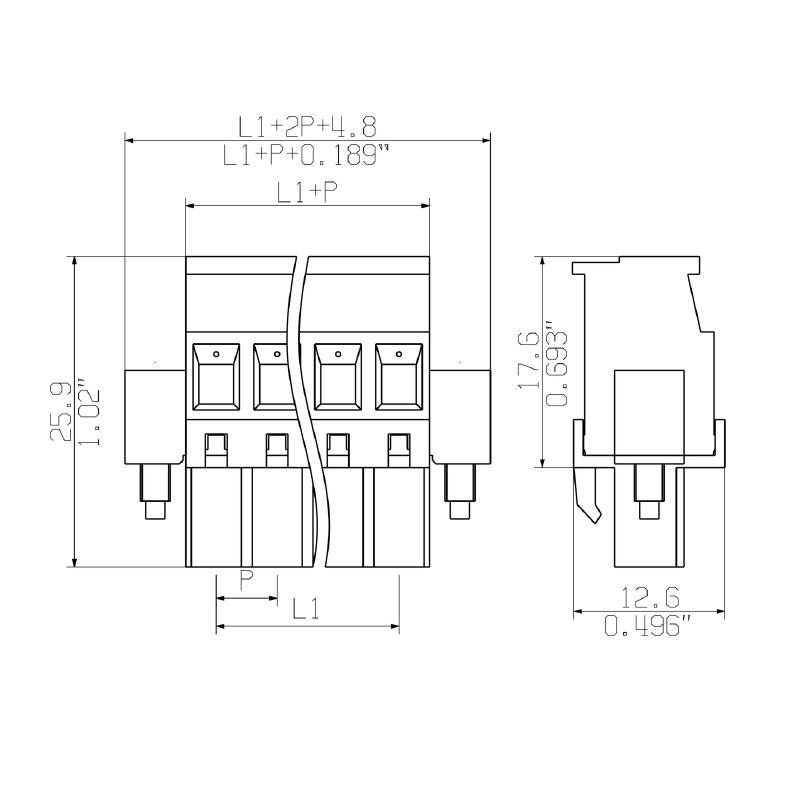

2648360000 - 21-Pole 5.08mm Connector with UL Certification, 4” Length (Pack of 18)

Description:

Elevate your connection solutions with the CPS 508/21/270F SN GN BX This advanced connector meets numerous standards, including RoHS compliance, and is certified by UL (certificate number E60693) Designed for ease of use in field connections, it features a clamping yoke mechanism with a 508 mm (02 inches) pitch, offering 21 poles with an overall length of 1016 mm (4 inches) The connector requires a minimal wire stripping length of 7 mm and operates effectively with a tightening torque ranging from 0.

5 Nm to 055 Nm Built for longevity, it can handle up to 25 plugging cycles, with the capacity to endure a plugging force of over 9 N per pole and a maximum pulling force of 6 N Crafted from PA insulating material, it boasts a Group I insulation resistance rated at an impressive 500 MΩ, along with a UL 94 flammability rating of V-0 Compatible with a wide variety of conductor sizes spanning from 02 mm² to 4 mm², this product meets specific AWG requirements.

Additionally, it is suitable for long-term storage in environments with temperatures up to 50 °C and a maximum humidity level of 70%.

Features and Benefits:

•Field connection capability.

•Clamping yoke connection method.

•Pale green color.

•Compliant with multiple environmental standards.

•Compact design for efficient applications.

Specifications:
