2649130000 - 5.08mm 4-Pole PA GF Connector, 15A, 630V, 90° Elbow (Pack of 360)

SKU: SKU: 2649130000 Download PDF

Select a Variant:

2649130000 - 5.08mm 4-Pole PA GF Connector, 15A, 630V, 90° Elbow (Pack of 360)

SET THE QTY:

Now $354.96 Web pricing policy

~~BEFORE $0.00~~ Now $354.96 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the OMNIMATE Signal series connector, specifically crafted for secure board connections using THT solder techniques With a robust design, it supports a maximum current of 15 A and a voltage rating of 630 V, adhering to IEC standards Featuring a 508 mm pitch and a uniquely designed 90° outgoing elbow, this connector contains 4 poles, each fitted with a solder pin measuring 39 mm in length.

The solder pins boast dimensions of 10 x 10 mm, while the solder eyelet hole has a diameter of 16 mm Constructed from PA GF insulating material, this connector comes in a pale green hue that complies with the RAL 6021 standard Additionally, it meets RoHS guidelines and carries certifications from UL, ensuring high-quality performance and reliability.

Features and Benefits:

•RoHS compliant without exemption.

•Contains no SVHC above 0.1 wt%.

•Rated for use in temperatures from -40 °C to 105 °C.

•UL 94 flammability rating of V-0.

•Compatible only with OMNIMATE basic products.

Specifications:

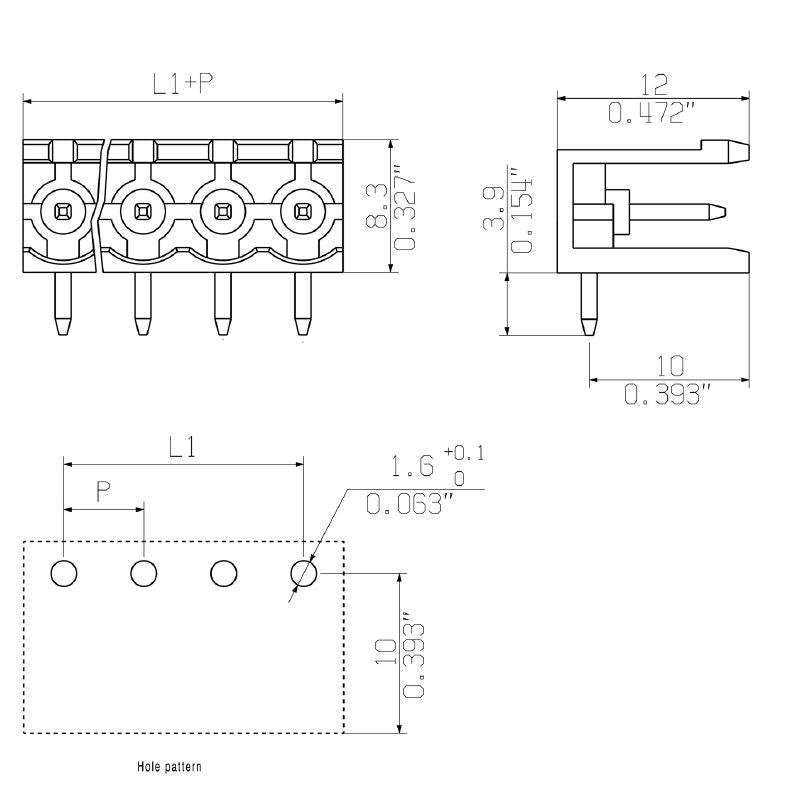

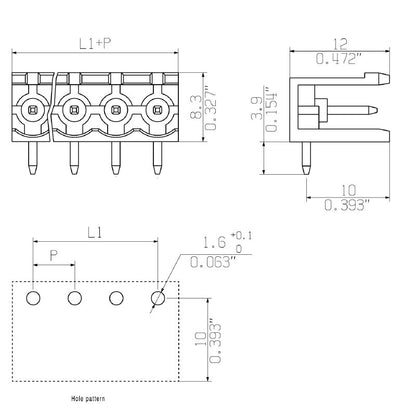

Product family	OMNIMATE Signal - series BL/SL 5.08
Type of connection	Board connection
Mounting onto the PCB	THT solder connection
Pitch in mm (P)	5.08 mm
Outgoing elbow	90°
Number of poles	4
Solder pin length (l)	3.9 mm
Solder pin dimensions	1.0 x 1.0 mm
Solder eyelet hole diameter (D)	1.6 mm
L1 in mm	15.24 mm
Number of rows	1
Material data	{'Insulating material': 'PA GF', 'Contact base material': 'Cu-alloy', 'Contact material': 'Cu-alloy', 'Contact surface': 'tinned', 'Tinning type': 'matt'}
Rated data acc. to IEC	{'Rated current': '15 A', 'Rated voltage for surge voltage class / pollution degree II/2': '630 V', 'Rated impulse voltage for surge voltage class / pollution degree II/2': '4 kV'}
Rated data acc. to UL 1059	{'Rated voltage (Use group B / UL 1059)': '300 V', 'Rated current (Use group B / UL 1059)': '15 A'}
Rated data acc. to CSA	{'Rated voltage (Use group B / CSA)': '300 V', 'Rated current (Use group B / CSA)': '15 A'}
Net weight	1.44 g
