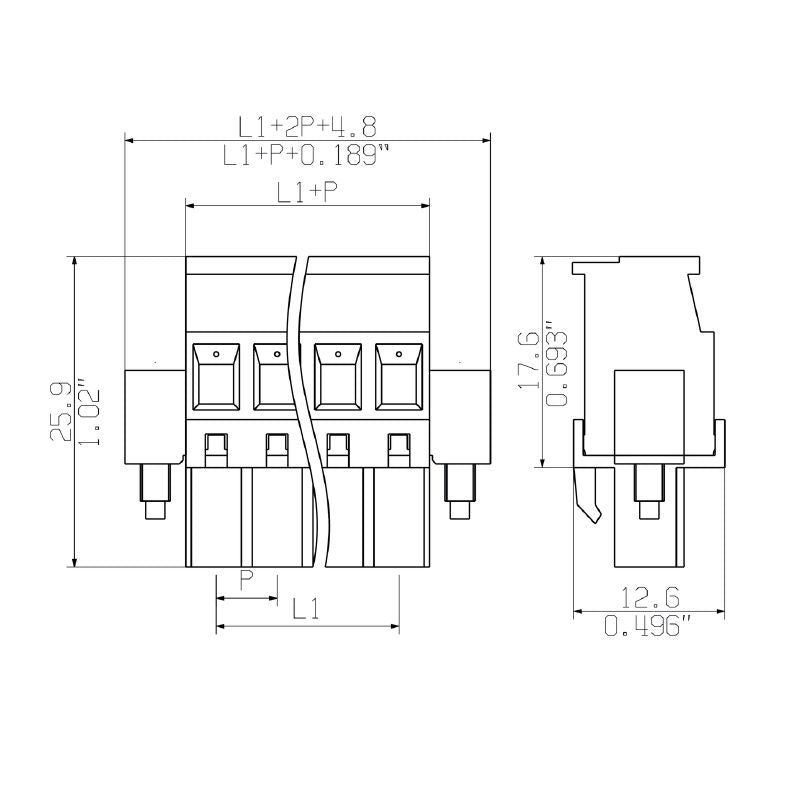

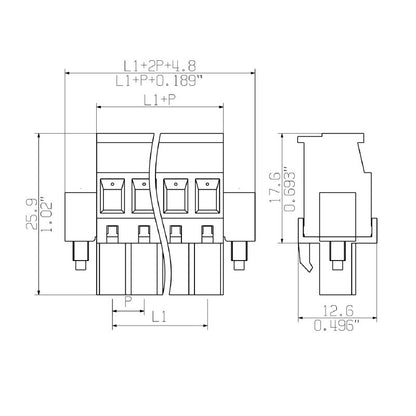

2648260000 - RoHS Compliant 5.08mm 11-Pole Connector with 270° Outlet (Pack of 33)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 508/11/270F SN GN BX, a highly functional component tailored for exceptional performance This product meets RoHS compliance standards and boasts a UL certification (E60693) It supports a current of 18 A at a maximum voltage of 630 V, adhering to IEC guidelines Packaged conveniently in a box, it weighs just 2335 grams and falls under the OMNIMATE Signal series Utilizing a reliable clamping yoke for wire connections, this unit features 11 poles with a unique conductor outlet positioned at a 270° angle, all within a 5.

08 mm pitch Versatility is key with this product, accommodating wire connections ranging from 02 mm² to 4 mm², compatible with AWG sizes 26 to 14, and various cable types Built to last, it offers an impressive insulation resistance of 500 MΩ, a flame rating of V-0, and is constructed from durable PA insulating material, ensuring safety and longevity Its operation is reliable across a wide temperature range of -40 °C to 105 °C.

Features and Benefits:

•RoHS compliant with exemption 6c.

•UL certified with certificate number E60693.

•Field connection type with clamping yoke method.

•Conforms to IEC standards for electrical safety.

•Insulation resistance of 500 MΩ.

•Flame rating of V-0.

•Accommodates various wire types including solid, stranded, and flexible wires.

Specifications:
