2649690000 - 5.08mm Connector, 9 Poles, RoHS/UL Approved, 630V, 15A (Pack of 150)

Description:

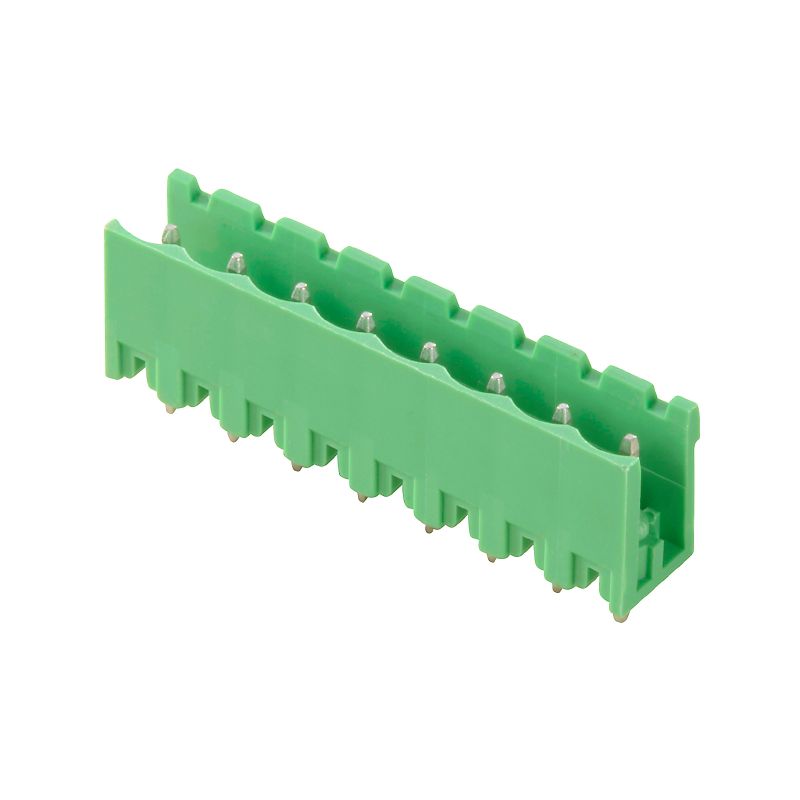

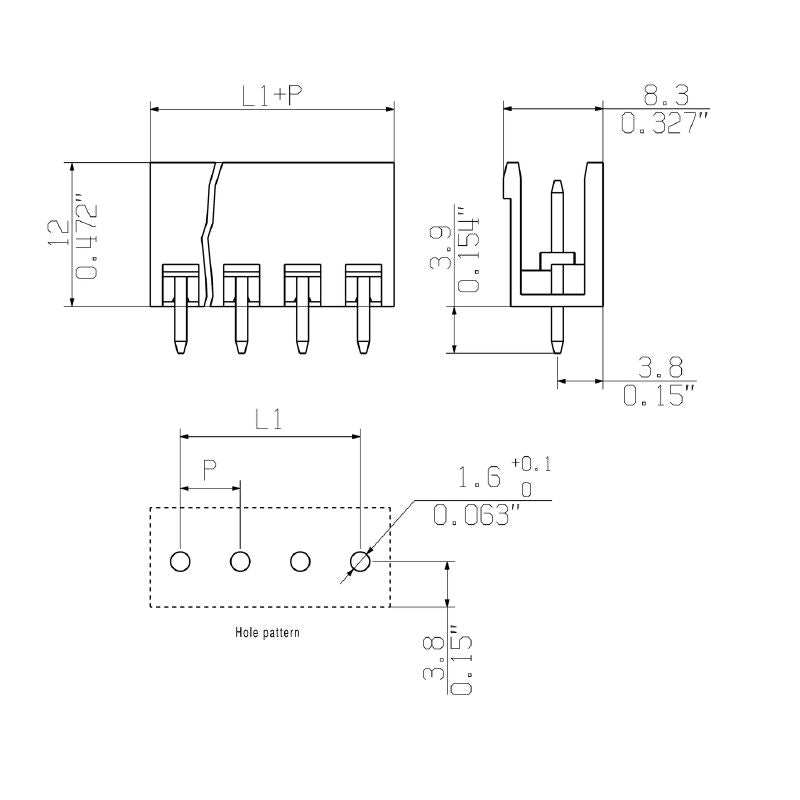

Introducing the CH 508/09/180 39SN GN BX connector, a reliable choice with multiple compliance approvals including RoHS and UL Designed to operate at a rated voltage of 630 V and handle a maximum current of 15 A, this product ensures safety and performance Housed in a compact package weighing just 324 grams, it features a board connection utilizing a through-hole soldering technique The connector has a 5.

08 mm pitch and a 180° elbow, designed to accommodate 9 poles, each one equipped with a solder pin measuring 39 mm in length Constructed from durable PA GF insulating material, it sports a pale green color that corresponds to RAL 6021 Capable of withstanding operating temperatures of up to 105 °C, it also maintains performance in storage conditions ranging from -40 °C to 70 °C Built to adhere to rigorous safety standards, this connector offers both reliability and functionality for your electrical applications.

Features and Benefits:

•RoHS compliant.

•UL approved with Certificate No. E60693.

•Designed for THT solder connection.

•Can operate in temperatures up to 105 °C.

•Compatible only with OMNIMATE basic products.
