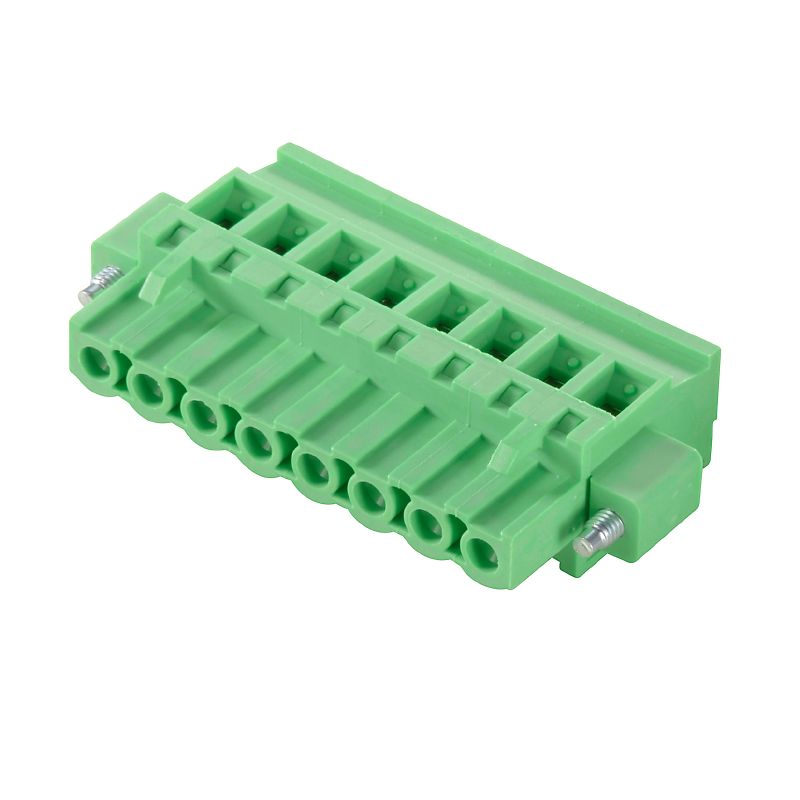

2647720000 - 5.08mm Electrical Connection Clip, 630V, Robust Design (Pack of 90)

Description:

Introducing the CPS 508/03/90F SN GN BX, a robust solution designed for reliable field connections across various electrical applications This product is rated for 630 V (IEC standards) and supports a maximum current of 22 A, while also adhering to UL specifications of 300 V and 18 A With a compact pitch of 508 mm (02 in), it utilizes a clamping yoke connection method and is compatible with a wide range of wire sizes from 0.

2 to 4 mm² (AWG 26 to AWG 14) Presented in a pale green shade, this component weighs just 695 g and comes conveniently packaged in a box Engineered for superior performance, the CPS 508/03/90F SN GN BX meets RoHS compliance and operates efficiently up to a maximum temperature of 105 °C, making it an ideal choice for safe and effective electrical connections.

Features and Benefits:

•RoHS compliant with exemption.

•Suitable for a wide range of wire sizes.

•Designed for easy clamping yoke connections.

•Optimized for compact installations with a compact pitch of 5.08 mm.

Specifications:
