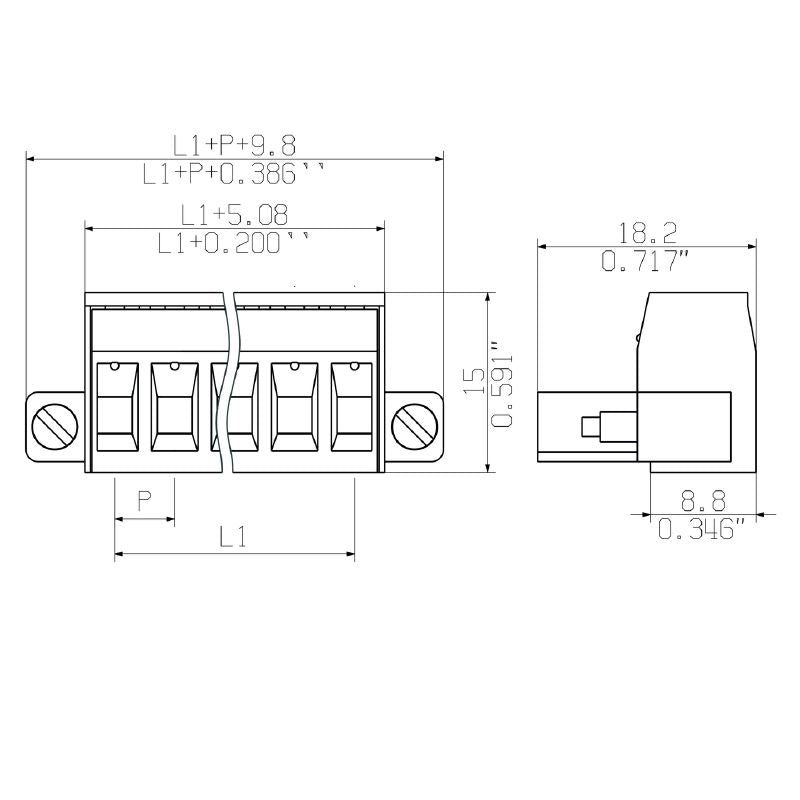

2648150000 - Compact 23-Pole Signal Connector, 0.2-2.5 mm², 180° Outlet (Pack of 30)

Description:

Introducing the CPS 508/23/180F SN GN BX, a reliable connector crafted for field connections within the OMNIMATE Signal series This versatile component accommodates wire sizes from 02 mm² to 25 mm², supporting a maximum current of 22 A and a voltage rating of 630 V in alignment with IEC standards Additionally, it holds a UL certification with a rating of 300 V and 15 A Featuring a pale green hue, its 180° conductor outlet direction and innovative clamping yoke connection method provide dependable performance.

Compact yet efficient, this model supports up to 23 poles with a stripping length of 7 mm, making it suitable for various applications.

Features and Benefits:

•Field connection with clamping yoke method.

•Pitch of 5.08 mm for efficient connection.

•Can handle a variety of wire sizes from 0.2 mm² to 2.5 mm².

•Minimal storage temperature of -40 °C and maximum of 70 °C.

•High flammability rating of V-0, ensuring safety.

•Tinning type is matt for improved connection reliability.

•Plugging cycles of up to 25, suitable for long-term use.

•Electrical installations where field wiring connections are required.

Specifications:
