2648180000 - RoHS Compliant 5.08mm Connector with Yoke Connection, 18A Max (Pack of 90)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

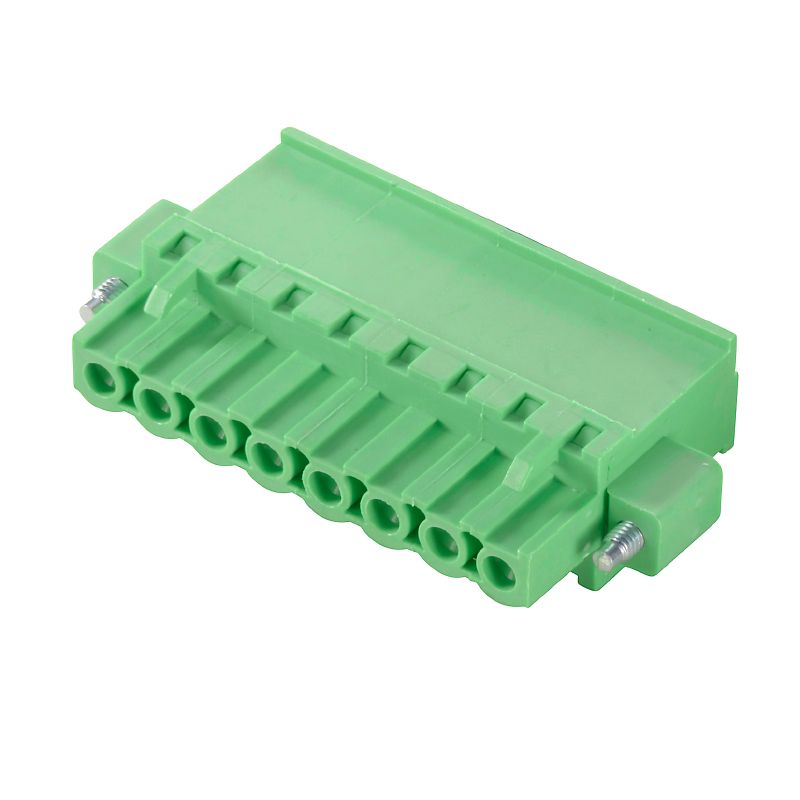

Introducing the CPS 508/03/270F SN GN BX connector, meticulously crafted to comply with RoHS standards and carrying UL certification number E60693 This connector boasts a pitch of 508 mm and incorporates a clamping yoke connection ideal for efficient field connections It accommodates wire sizes from 02 to 4 mm² (or AWG 26 to AWG 14), ensuring versatility in various applications With a maximum rated current of 18 A and a maximum operating voltage of 630 V per IEC regulations, this product also meets the UL criteria of 300 V at 15 A.

Each unit arrives neatly packaged in a box, adhering to stringent environmental compliance standards.

Features and Benefits:

•Compliant with RoHS and UL regulations.

•Clamping yoke connection method.

•Insulation resistance of 500 MΩ.

•Available for conductor cross-sections from 0.2 mm² to 4 mm².

•Suitable for various wire connection types supporting different sizes.

Specifications:
