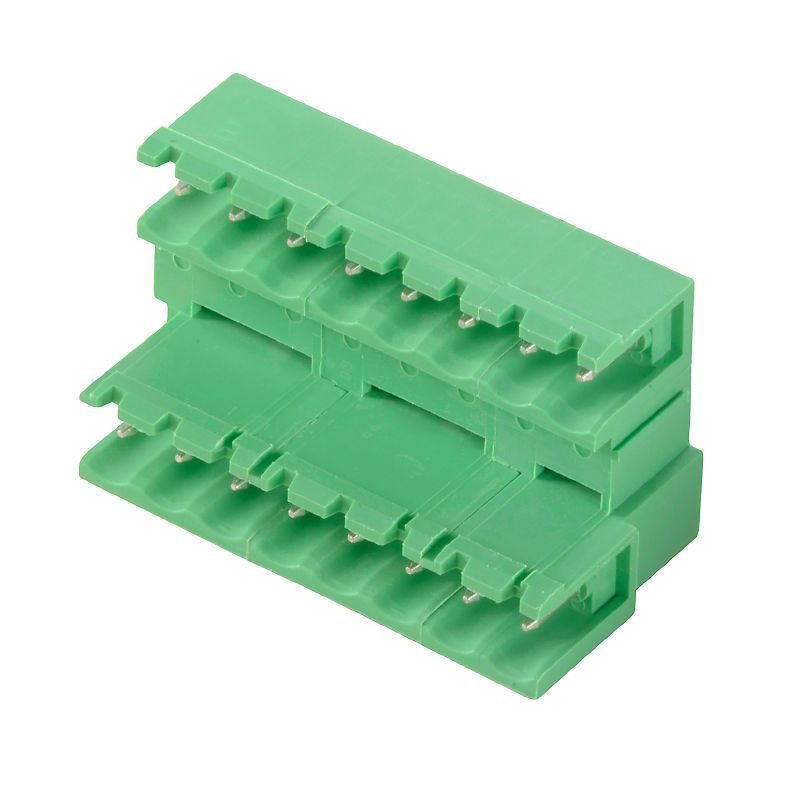

2650100000 - 90° THT Connector, 22 Poles, 5.08mm Pitch, 10A Rating (Pack of 32)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CHDV 508/22/90 35SN GN BX connector, a reliable solution that complies with IEC and UL standards With a voltage capacity of 630 V and a current rating of 10 A, this connector is expertly crafted for board connections using through-hole (THT) soldering techniques It features a 90-degree elbow design with 22 poles, where each pole is fitted with a solder pin measuring 35 mm in length Environmentally friendly, this connector adheres to RoHS regulations and comes conveniently packaged in a box.

Perfect for your electronic projects!.

Features and Benefits:

•Lightweight at 16.83 g.

•Insulating material made from PA GF.

•Rated for temperatures ranging from -40 °C to +105 °C.

•UL 94 flammability rating of V-0.

•Tinned contact surface for durability.

•Suitable for long-term storage under specified conditions.

Specifications:
