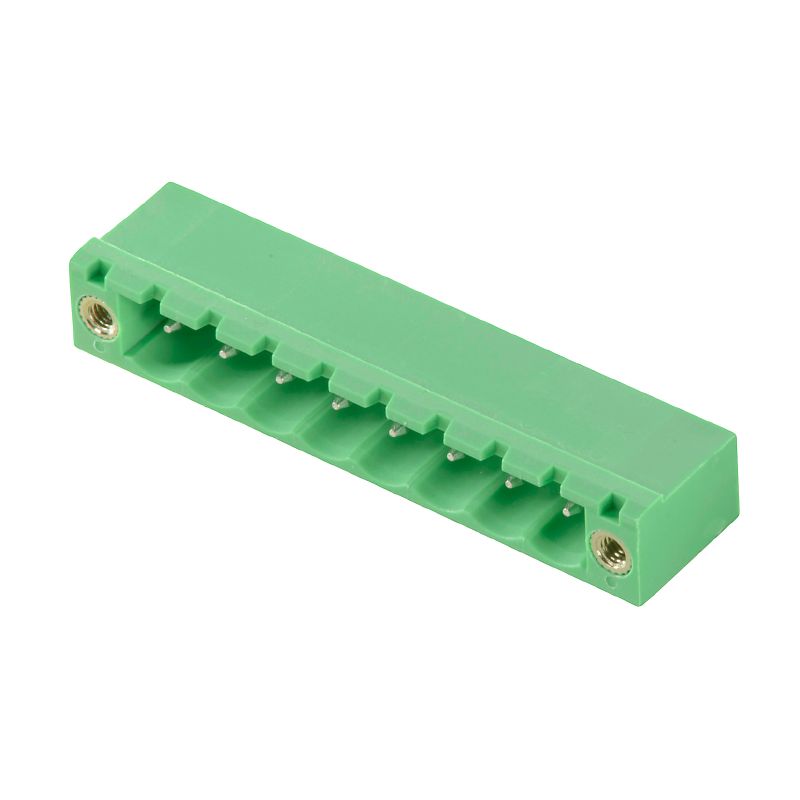

2648510000 - 5.08mm Signal Connector with 13 Poles, 15A, Elbow Design (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH 508/13/90F 39SN GN BX, a dependable connection component designed for board mounting, featuring a 508 mm pitch This component supports 13 poles, each equipped with a solder pin measuring 39 mm in length, allowing for efficient connectivity With a robust rated current of 15 A and a voltage capacity of 630 V, it meets the stringent IEC and UL standards Designed with a 90° outgoing elbow, this component is made from PA GF insulating material, which boasts a UL 94 flammability rating of V-0, ensuring safety and reliability.

Additionally, it conforms to RoHS requirements Each box contains 100 units, making it a practical choice for your project needs.

Features and Benefits:

•Compliant with RoHS and cURus.

•Available in pale green color.

•Features a compact THT solder connection.

•Designed with a 90° outgoing elbow.

•Includes a long storage temperature range from -40 °C to 70 °C.

•Used in board connections for various electronic applications.

Specifications:
