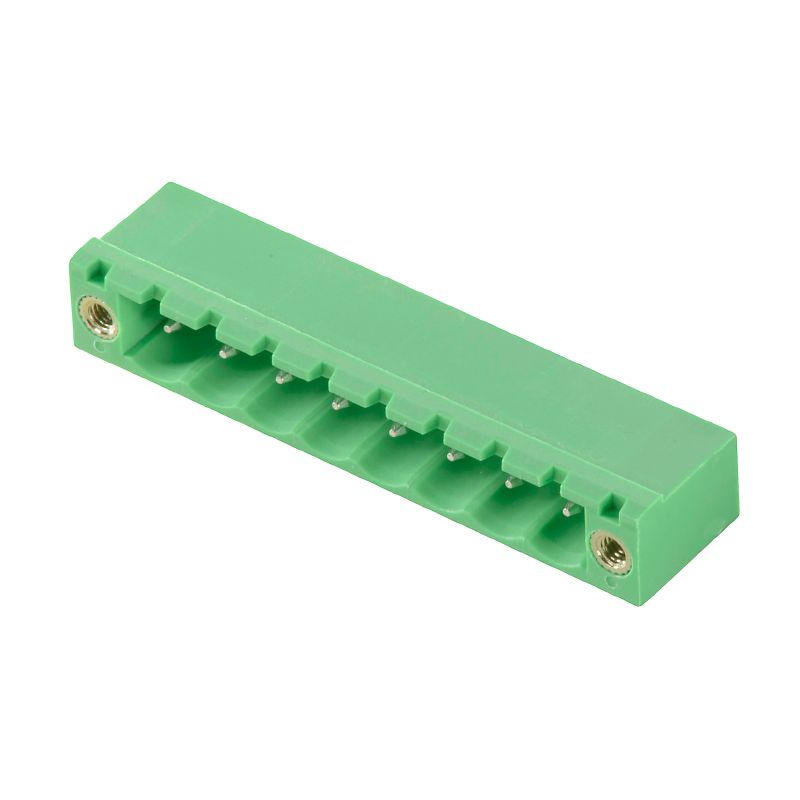

2648470000 - 9-Pole 90° Connector, 3.9mm Pins, RoHS & UL Compliant (Pack of 120)

Description:

Introducing the CH 508/09/90F 39SN GN BX connector, a high-quality component that adheres to both RoHS and UL safety standards Designed specifically for board connections, this connector requires through-hole (THT) solder connections for secure mounting It features a convenient 90-degree elbow orientation and is equipped with 9 poles, each offering a solder pin length of 39 mm With an overall length of 40.

64 mm and a striking pale green color similar to RAL 6021, this connector combines functionality with an appealing aesthetic Crafted from durable PA GF insulating material, it boasts a UL 94 flammability rating of V-0, ensuring safety and longevity For optimal storage, keep this device in conditions not exceeding 50 °C and with humidity levels up to 70% Please note that it is designed exclusively for compatibility with OMNIMATE basic products.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Designed for board connections with THT solder connections.

•Features a 90-degree outgoing elbow.

•Contains 9 poles with a solder pin length of 3.9 mm.

•Constructed with an insulating material rated with a UL 94 flammability rating of V-0.

•Color similar to RAL 6021.

Specifications:
