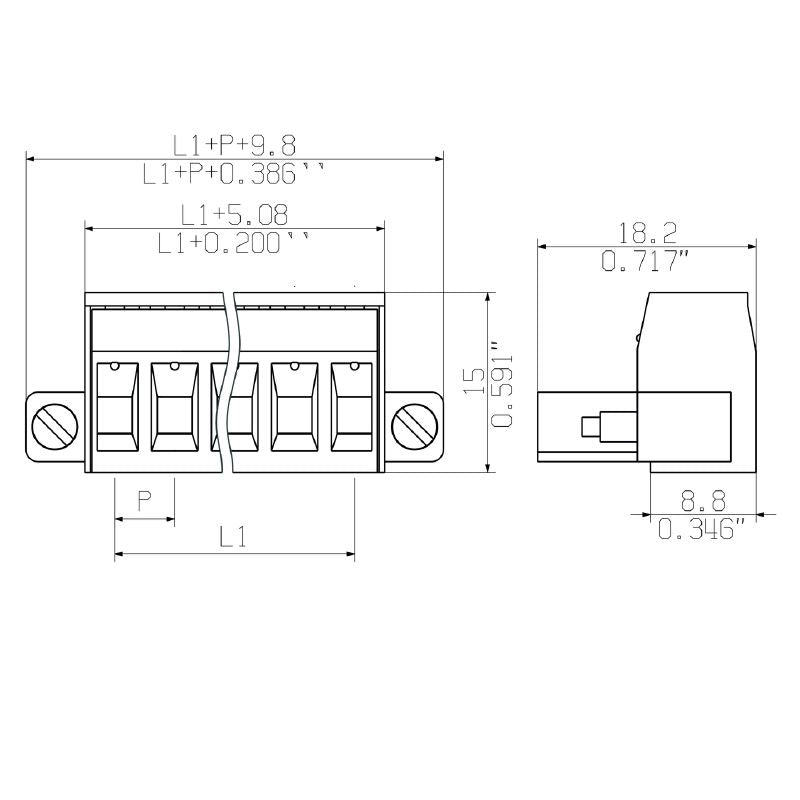

2648080000 - Reliable Electrical Connector for 0.2mm² to 4mm² Wires (Pack of 36)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience the reliability of the CPS 508/16/180F SN GN BX, your go-to solution for field connections in electrical applications This versatile component supports both stranded and solid wires, featuring a clamping range from 02 mm² to 4 mm² Compatible with wire sizes ranging from AWG 30 to AWG 12, it operates seamlessly at a rated voltage of 630 V and handles currents up to 22 A The robust design allows for a stripping length of 7 mm, while its clamping yoke connection method and 180° conductor outlet direction make installation straightforward and efficient.

Features and Benefits:

•Insulating material is made from PA.

•Compliant with RoHS and includes Lead in its SVHC.

•Designed for a maximum operating temperature of 105 °C.

•Tightening torque ranges between 0.5 Nm and 0.55 Nm.

•Durable with a rated impulse voltage of 4 kV across several pollution degrees.

Specifications:
