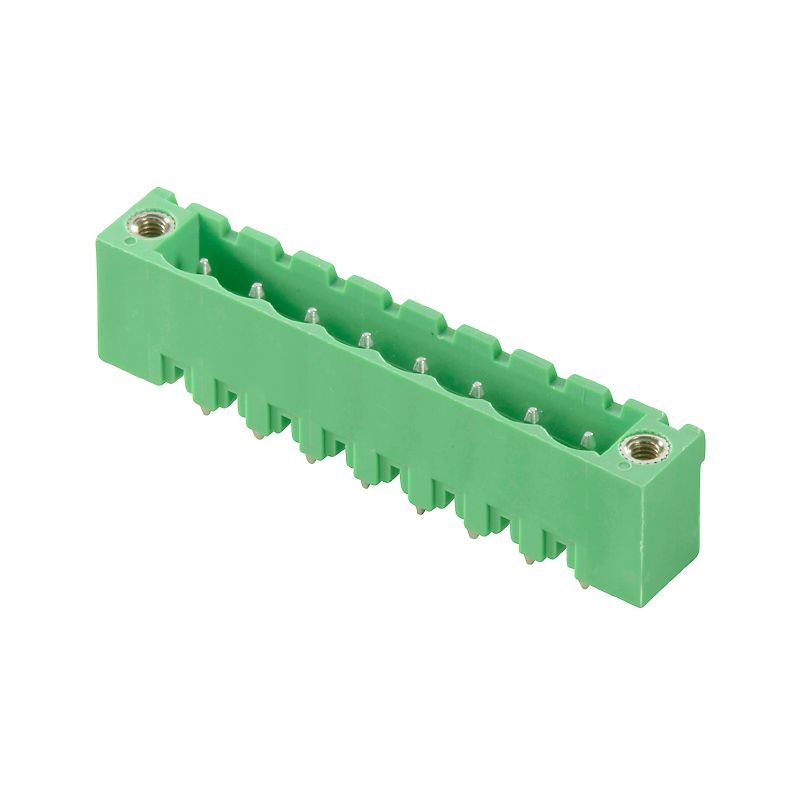

2648680000 - 5.08mm Pitch THT Connector, 7 Poles, 180° Elbow (Pack of 150)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH 508/07/180F 39SN GN BX connector, a reliable component from the OMNIMATE Signal series specifically crafted for THT solder connections This versatile connector supports up to 15 A at an IEC voltage of 630 V and is UL rated for 300 V at the same current level Each box contains 150 connectors, making it suitable for larger projects Designed to meet RoHS and cURus standards, it guarantees compliance for various applications, alongside an exemption for environmental regulations.

With a compact pitch of 508 mm, this connector features a 180° outgoing elbow and combines 7 poles with solder pin lengths measuring 39 mm, ensuring efficient connectivity for your needs.

Features and Benefits:

•Compliant with RoHS and cURus standards.

•Available in pale green color.

•Made with PA GF insulating material.

•Resistant to temperature variations from -40 °C to 105 °C.

Specifications:
