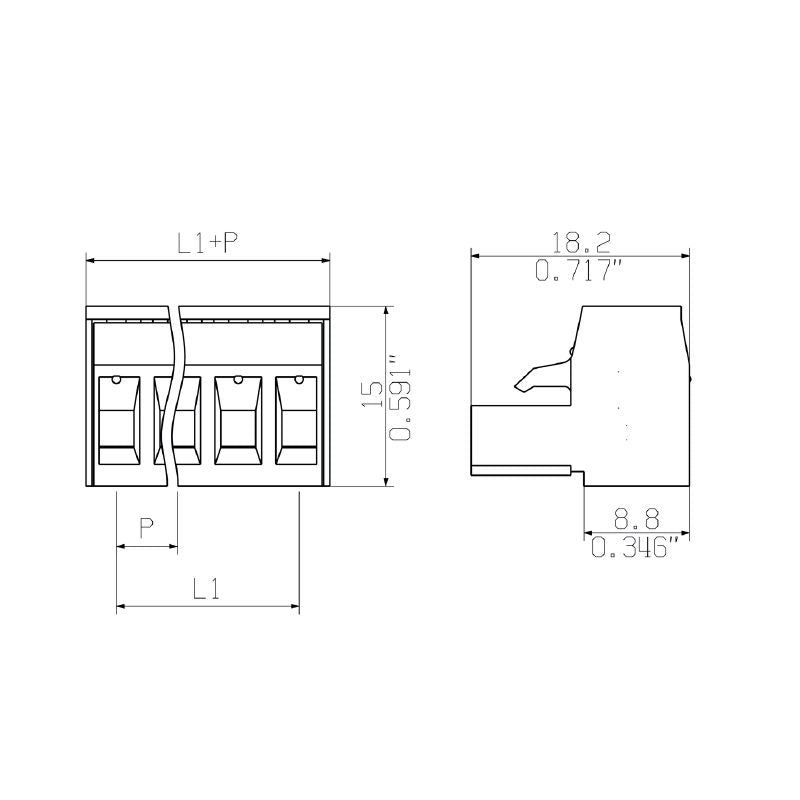

2647370000 - 5.08mm Connector with Clamping Yoke for Versatile Wire Applications (Pack of 48)

2647370000 - 5.08mm Connector with Clamping Yoke for Versatile Wire Applications (Pack of 48)

SKU: SKU: 2647370000   Download PDF

Select a Variant:
  • 2647370000 - 5.08mm Connector with Clamping Yoke for Versatile Wire Applications (Pack of 48)
Qty:
Regular price Now $489.91   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $489.91 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the CPS 508/14/180 SN GN BX connector, engineered for reliable field connections with a compact 508 mm pitch This versatile connector features a clamping yoke mechanism, making it compatible with various wire sizes, suitable for both stranded and solid conductors Adhering to RoHS regulations, it also boasts pertinent UL certifications, ensuring compliance and safety for a range of applications.

Features and Benefits:

    •Compliant with RoHS exemptions.

    •Clamping range suitable for various wire sizes from 0.2 mm² to 2.5 mm².

    •180° conductor outlet direction.

Specifications:

 Rated Voltage (IEC) 630 V
 Rated Current (IEC) 22 A
 Wire Connection Method Clamping yoke connection
 Number of Poles 14
 Storage Temperature -40 to 70 °C
 Insulating Material PA
 Color Pale green
 UL File Number E60693
 Pitch 5.08 mm
 Stripping Length 7 mm
 Tightening Torque (min) 0.5 Nm
 Tightening Torque (max) 0.55 Nm
 Plugging Cycles 25
 Contact Material Copper alloy
