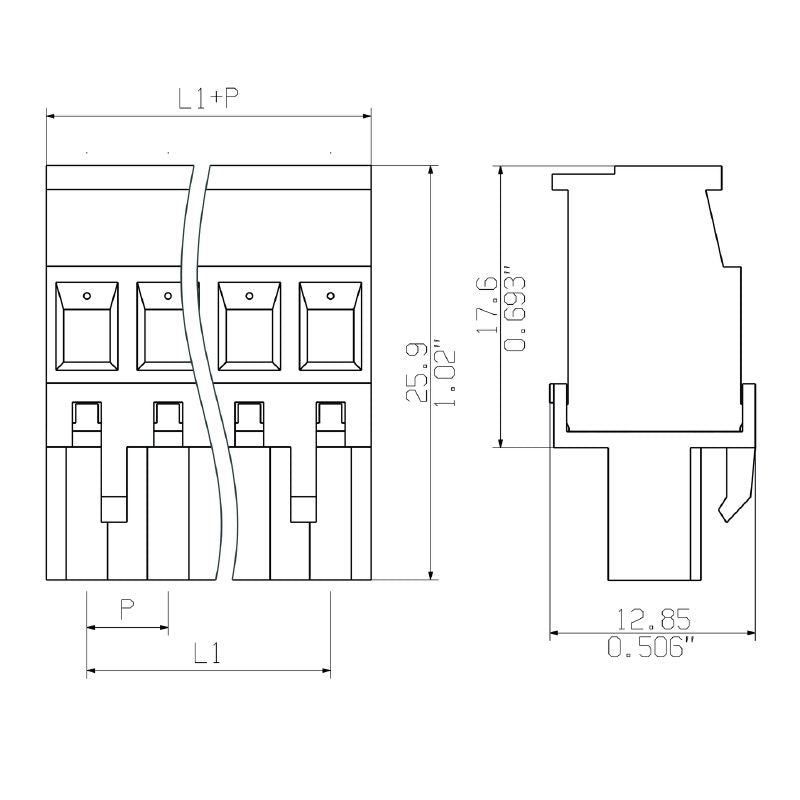

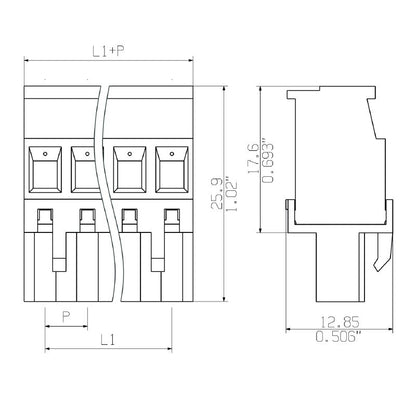

2647190000 - 5.08mm 19-Pole Yoke Connector with 90° Angle Design (Pack of 21)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 508/19/90 SN GN BX, a robust connector designed for efficient field connections utilizing a clamping yoke system With an IEC rating of 630 V and 22 A, this versatile connector accommodates wire cross sections from 02 to 4 mm², while receiving UL certifications for AWG sizes 26 to 14 at 300 V and 18 A Part of the OMNIMATE Signal series, it comes packaged in sturdy boxes weighing approximately 38.

95 g The connector boasts a pitch of 508 mm (02 inches) and can support up to 19 poles Its 90° conductor outlet direction, with a tightening torque range of 05 to 055 Nm, ensures reliable connections, capable of withstanding up to 25 plugging cycles.

Features and Benefits:

•Clamping yoke connection method.

•Lightweight at approximately 38.95 g.

•Suitable for a variety of wire sizes from 0.2 mm² to 4 mm².

•Supports high current up to 22 A.

•Compatible only with OMNIMATE basic products.

•Can operate across a wide temperature range from -40 °C to 105 °C.
