2646720000 - 5mm Pitch 20-Pole PCB Connector with 3.5mm Solder Pins (Pack of 36)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

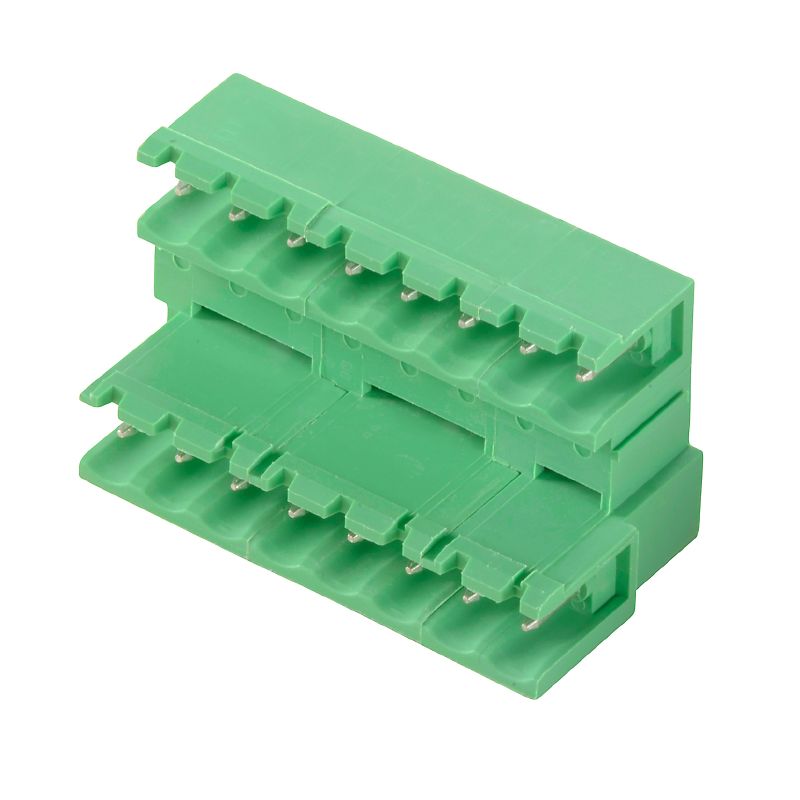

Enhance your PCB connections with this OMNIMATE Signal series connector, engineered for through-hole THT soldering With a 5 mm pitch, it accommodates up to 20 poles and features solder pins measuring 35 mm in length Rated for a maximum of 630 V and capable of handling up to 10 A, this connector meets IEC and UL voltage standards Its pale green hue offers a distinctive look while ensuring compliance with RoHS and REACH regulations, making it suitable for a wide range of applications.

Features and Benefits:

•Compliant with RoHS standards.

•No SVHC above 0.1 wt%.

•Rated for operating temperatures up to 105 °C.

•Connection type is PCB mount.

•Maximum humidity for long-term storage is 70%.

Specifications:
