2646660000 - 14-Pole 5mm Connector, 3.5mm Pins, RoHS Compliant (Pack of 48)

2646660000 - 14-Pole 5mm Connector, 3.5mm Pins, RoHS Compliant (Pack of 48)

SKU: SKU: 2646660000   Download PDF

Select a Variant:
  • 2646660000 - 14-Pole 5mm Connector, 3.5mm Pins, RoHS Compliant (Pack of 48)
Qty:
Regular price Now $295.78   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $295.78 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

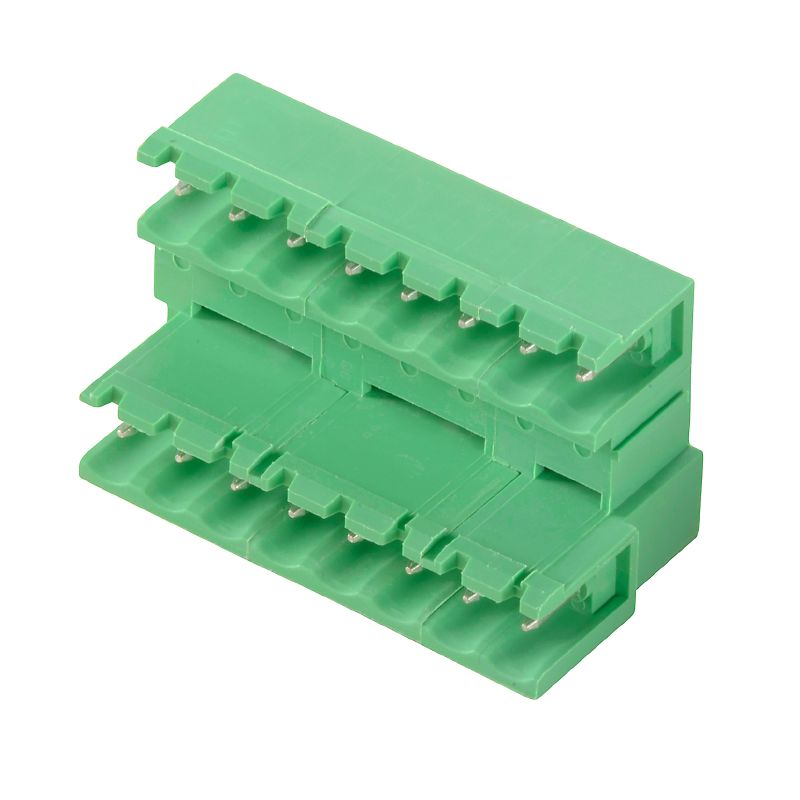

Introducing the OMNIMATE Signal series, a reliable solution for board connections with its THT soldering compatibility This connector boasts a 5 mm pitch and features 14 poles, each equipped with a solder pin measuring 35 mm in length Presented in a subtle pale green hue, it adheres to RoHS standards and has a net weight of 1071 grams Packaged securely in a box, this connector can function efficiently up to a maximum temperature of 105 °C.

It is rated for a voltage of 630 V and supports a current of 10 A Additionally, it ensures environmental safety with no SVHC present over 01 wt% This component is ideal for applications demanding connection integrity and flammability safety rated to UL 94 V-0 standards.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Rated for both IEC and UL standards.

    •Insulating material made of PA GF.

    •Storage temperature range from -40 °C to 70 °C.

    •Rated impulse voltage for multiple pollution degrees.

    •Only compatible with OMNIMATE basic products.

Specifications:

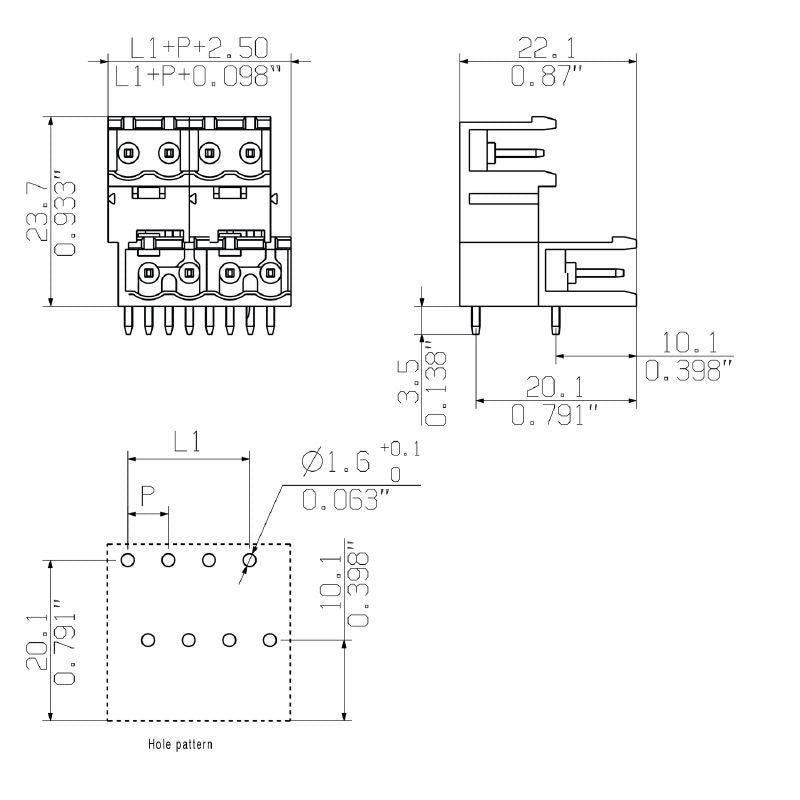

 Type of connection Board connection
 Mounting onto the PCB THT solder connection
 Pitch in mm (P) 5 mm
 Outgoing elbow 90°
 Number of poles 14
 Number of solder pins per pole 1
 Solder pin length (l) 3.5 mm
 Solder pin dimensions 1.0 x 1.0 mm
 Solder eyelet hole diameter (D) 1.6 mm
 Dimensions L1 in mm 30 mm
 Number of rows 2
 Insulating material PA GF
 Colour Pale green
 UL 94 flammability rating V-0
 Contact base material Cu-alloy
 Contact material Cu-alloy
 Contact surface tinned
 Tinning type matt
 Rated current 10 A
 Rated voltage for surge voltage class / pollution degree II/2 630 V
 Rated voltage for surge voltage class / pollution degree III/2 320 V
 Rated voltage for surge voltage class / pollution degree III/3 250 V
 Rated impulse voltage for surge voltage class/ pollution degree II/2 4 kV
 Rated impulse voltage for surge voltage class/ pollution degree III/2 4 kV
 Rated impulse voltage for surge voltage class/ contamination degree III/3 4 kV
 Rated voltage (Use group B / CSA) 300 V
 Rated current (Use group B / CSA) 10 A
 Reference to approval values Specifications are maximum values, details - see approval certificate.
