2646600000 - 5mm Pitch Connector with 8 Poles and 90° Elbow (Pack of 96)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

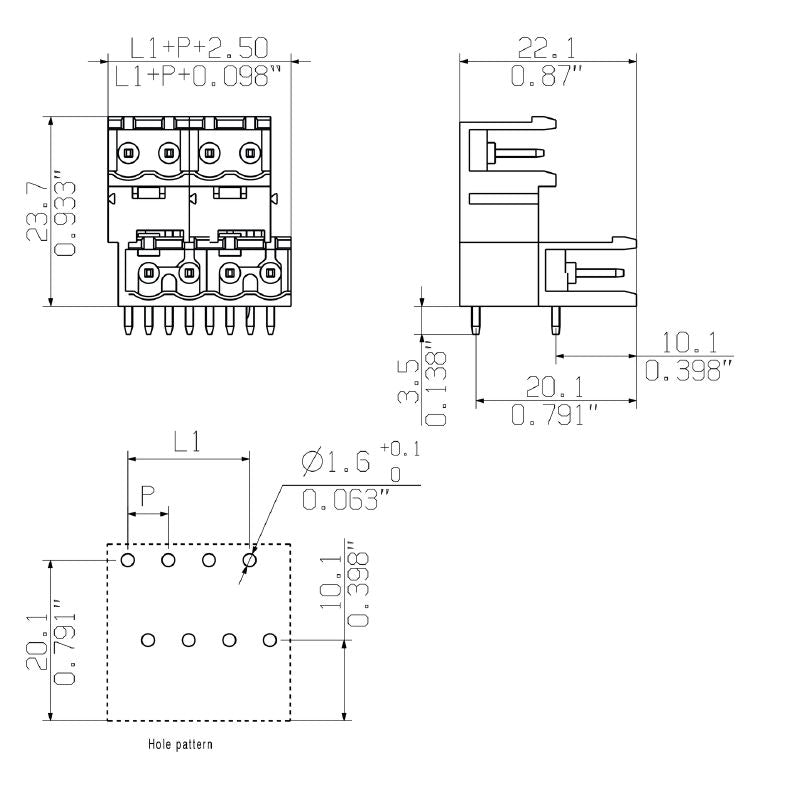

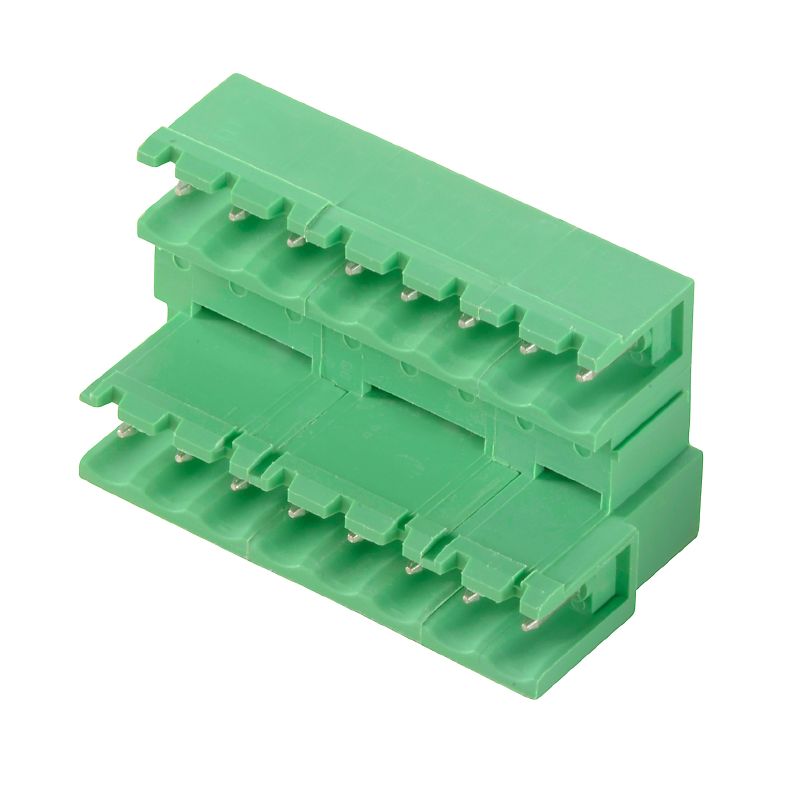

Introducing the CHDV 500/08/90 35SN GN BX, a premium connector tailored for reliable board connections featuring a through-hole solder mechanism With a 5 mm pitch and a convenient 90-degree outgoing elbow, this model supports 8 poles, each equipped with a solder pin measuring 35 mm in length and dimensions of 10 x 10 mm The solder eyelet boasts a diameter of 16 mm and a length of 15 mm Comprising 2 rows with a configuration of 2 pins, this connector excels in performance.

Constructed from PA GF insulating material, it showcases a subtle pale green hue akin to RAL 6021 This product adheres to various operational standards and complies fully with RoHS regulations, ensuring safety and environmental responsibility.

Features and Benefits:

•Compliant with RoHS regulations.

•Insulating material with UL 94 flammability rating of V-0.

•Tinned contact surface for enhanced conductivity.

•Designed for long-term storage with strict temperature and humidity specifications.

Specifications:
