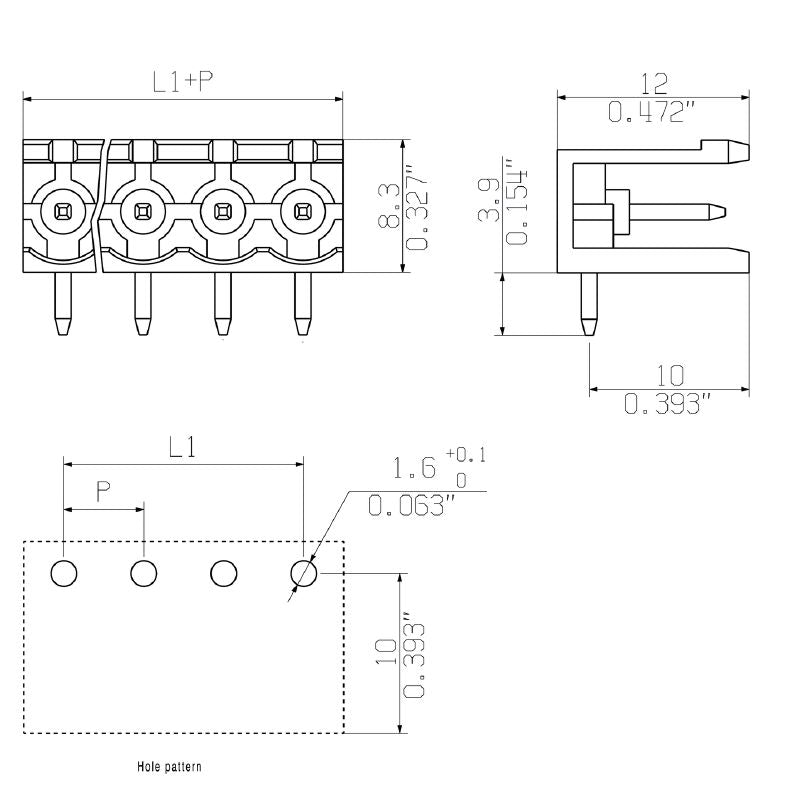

2646000000 - 5mm Pitch Connection Block with 20 Poles & 90° Elbow (Pack of 70)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH 500/20/90 39SN GN BX connector, a reliable choice that adheres to both ROHS and UL standards, certified under number E60693 This component is specifically crafted for board connections with a 5 mm pitch and incorporates 20 poles, each equipped with a 39 mm solder pin It features a 90° elbow for outgoing connections and has a lightweight design, weighing just 72 grams Able to withstand temperatures up to 105 °C, this product is also compliant with REACH regulations, containing no substances of very high concern (SVHC) above 0.

1 wt% Constructed from durable PA GF insulating material and featuring tinned copper alloy contacts, this connector is built for longevity and performance.

Features and Benefits:

•RoHS Compliant without exemption.

•Compatible with OMNIMATE basic products.

•Insulating material has a UL 94 flammability rating of V-0.

•Long term storage of the product with average temperature of 50 °C and maximum humidity 70% for 36 months.

Specifications:
