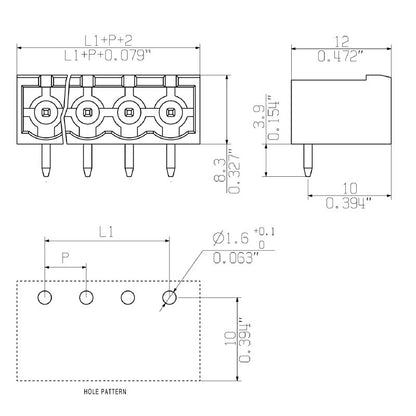

2645790000 - 40mm THT PCB Connector with 9 Poles and 90° Elbow Design (Pack of 150)

Description:

Introducing the CH 500/09/90G 39SN GN BX, a meticulously engineered electrical component that meets ROHS compliance and is backed by vital UL certifications (E60693) This product is designed for dependable performance with an IEC rating of 630 V/15 A and a UL rating of 300 V/15 A Weighing in at just 351 grams, the item comes neatly packaged in a box Its board connection type facilitates a straightforward installation via a THT solder connection onto the PCB, with a 5 mm pitch.

The unique 90° elbow design features 9 poles, each equipped with a solder pin measuring 39 mm in length The dimensions of each solder pin are 10 x 10 mm, and the solder eyelet hole has a diameter of 16 mm, while the overall length of the component is 40 mm Constructed from PA GF for insulation, this pale green device complies with UL 94 V-0 flammability standards Additionally, it utilizes tinned cu-alloy for the contact materials, featuring a matte finish.

With a wide operating temperature range of -40 °C to 105 °C, this component is versatile and suitable for numerous applications.

Features and Benefits:

•Meets RoHS compliance without exemption.

•Suitable for long-term storage up to 36 months under specified conditions.

•Only compatible with OMNIMATE basic products.

•Designed for PCB mounting via THT solder connection.

•Supports various rated voltages and currents for different use groups.
