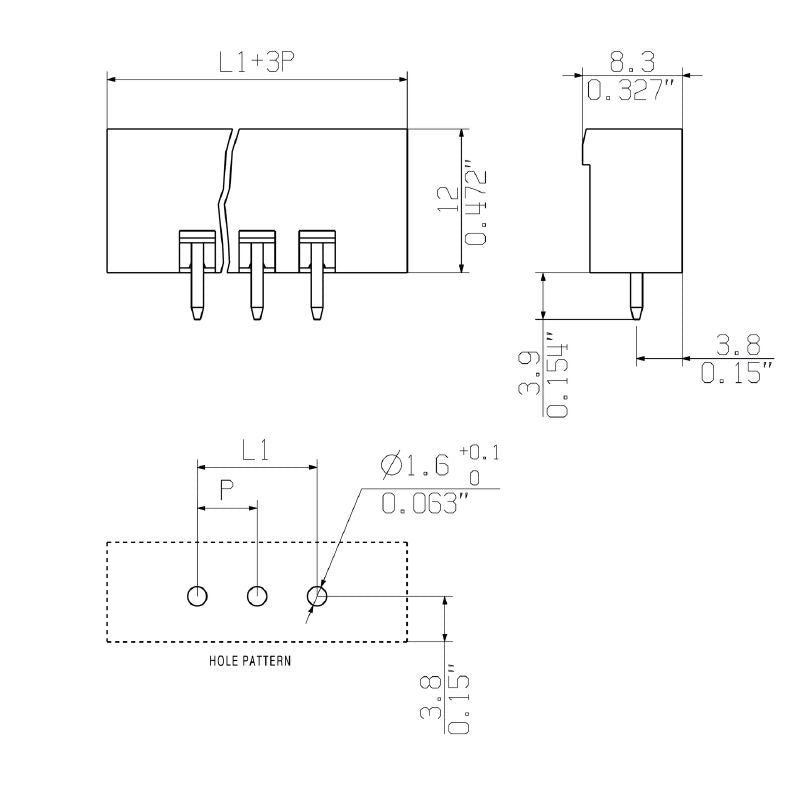

2645630000 - 5mm PCB Connector 24 Poles, 180° Elbow Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable board connection connector, ideally suited for mounting onto printed circuit boards (PCBs) via through-hole (THT) solder connections This component showcases a 5 mm pitch and a unique 180° outgoing elbow angle, accommodating up to 24 poles, each equipped with a 39 mm long solder pin Constructed from PA GF for insulation and a copper alloy for both the base and contact materials, this connector is designed to perform efficiently.

With a pale green finish, it is compliant with RoHS standards and supports a temperature range of -40 °C to 105 °C Each box contains 50 connectors, with a total weight of 944 g, making it a practical choice for your electronic assembly needs.

Features and Benefits:

•Compliant with RoHS and has detailed certifications.

•THT solder connection compatible with OMNIMATE basic products.

•Designed for use with a maximum operating temperature of 105 °C.

•Includes 24 poles with each having one solder pin.

Specifications:
