2645310000 - OMNIMATE 5mm Pitch Signal Connector, 90° Elbow, 15A Rated (Pack of 75)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH 500/15/90F 39SN GN BX, a precision-engineered component that aligns with ROHS standards It boasts an IEC voltage rating of 630 V and supports a current capacity of 15 A, with UL specifications also confirming a voltage rating of 300 V at the same current Packaged securely in a box, this item has a lightweight of 62 grams, ensuring ease of handling This part is part of the OMNIMATE Signal series, crafted for efficient board connections utilizing the THT soldering method.

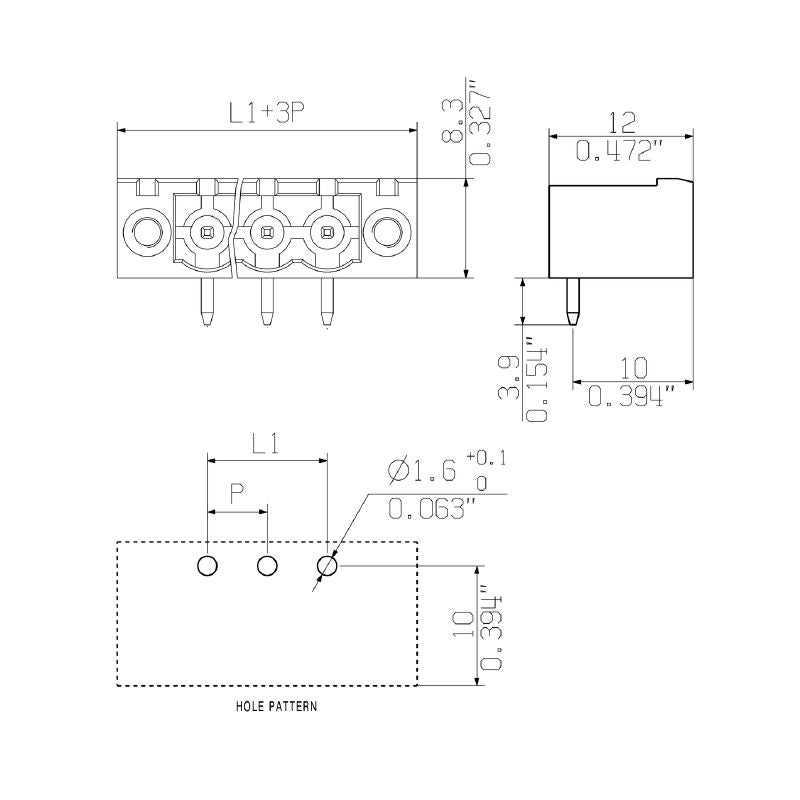

It features a 5 mm pitch with a 90-degree outgoing elbow, enabling connection for up to 15 poles, each equipped with a solder pin measuring 39 mm in length Designed with a pale green insulating material that meets UL 94 V-0 standards, the contact base is constructed from cu-alloy Withstanding temperatures from -40 °C to 105 °C, this component is your reliable choice for durability and performance in various applications, all while being environmentally compliant under ROHS guidelines regarding lead content.

Features and Benefits:

•Board connection type.

•THT soldering connection.

•Single solder pin per pole.

•High-quality insulating material.

Specifications:
