2645240000 - 5mm Pitch 8-Pole Connection Component for 630V Applications (Pack of 150)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

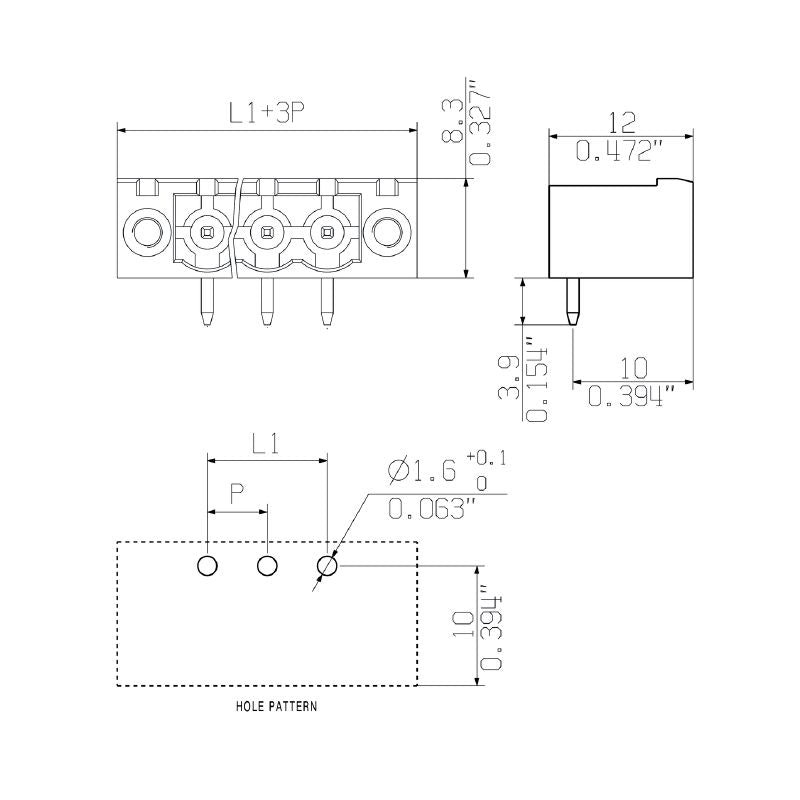

Introducing the CH 500/08/90F 39SN GN BX, an efficient board connection component engineered for a rated voltage of 630 V and a rated current of 15 A, meeting IEC specifications It also complies with UL standards for 300 V and 15 A operations With a compact pitch of 5 mm, this component can support up to 8 poles and features a distinctive 90° outgoing elbow for enhanced connectivity The solder pins are 3.

9 mm in length, specifically designed for through-hole soldering (THT) Made from PA GF, the insulating material showcases a pale green hue, reminiscent of RAL 6021 This product guarantees compatibility with OMNIMATE basic components, prioritizing operational safety and adhering to IEC 61984 regulations.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Rated for surge voltage up to 630 V.

•Flammability rating of V-0.

•Able to withstand storage temperatures between -40 °C and 70 °C.

•Board connection applications.

Specifications:
