2644950000 - ROHS & UL Certified Electrical Connector for 0.2-4 mm² Wires (Pack of 108)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

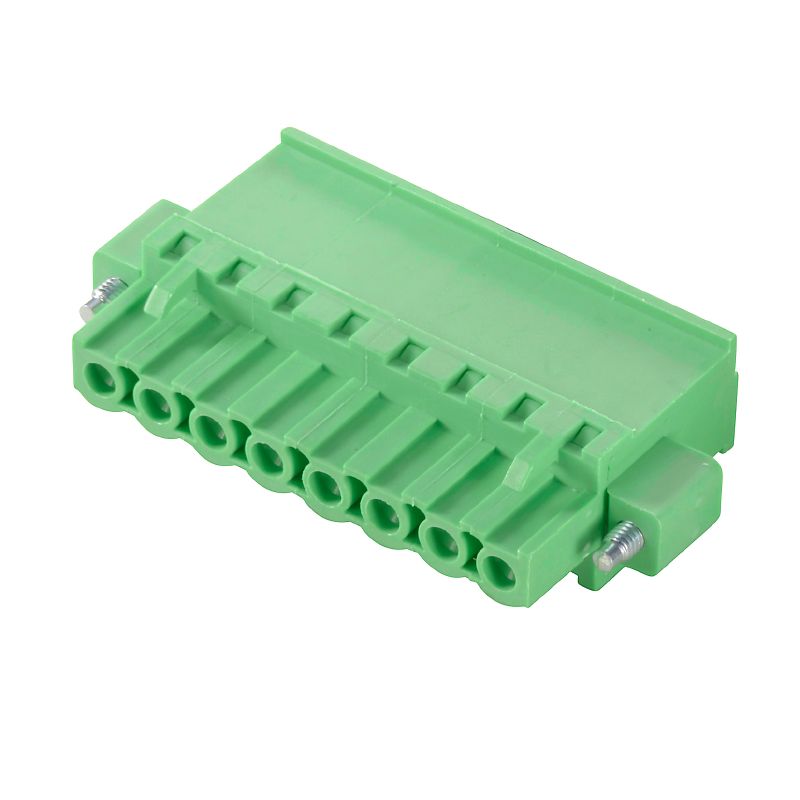

Introducing the CPS 500/02/270F SN GN BX electrical connector, expertly crafted to meet ROHS and UL safety standards This versatile connector accommodates wire sizes ranging from 02 mm² to 4 mm², boasting a maximum current rating of 18 A and a voltage rating of 630 V as per IEC standards, with an additional UL certification for 300 V Designed for field connections, it utilizes an innovative clamping yoke method for secure attachment.

Lightweight at just 49 grams, this connector is made from durable PA insulating material and comes in a refreshing pale green hue, matching the RAL 6021 color code Ideal for dependable electrical applications, this connector combines functionality with quality assurance.

Features and Benefits:

•Compliant with RoHS exemptions.

•Connectors suitable for various wire types including solid, stranded, and flexible.

•Single pole configuration.

•Designed with a low pitch facilitating compact arrangements.

•Rated for 25 plugging cycles with a maximum plugging force of 9 N.

Specifications:
