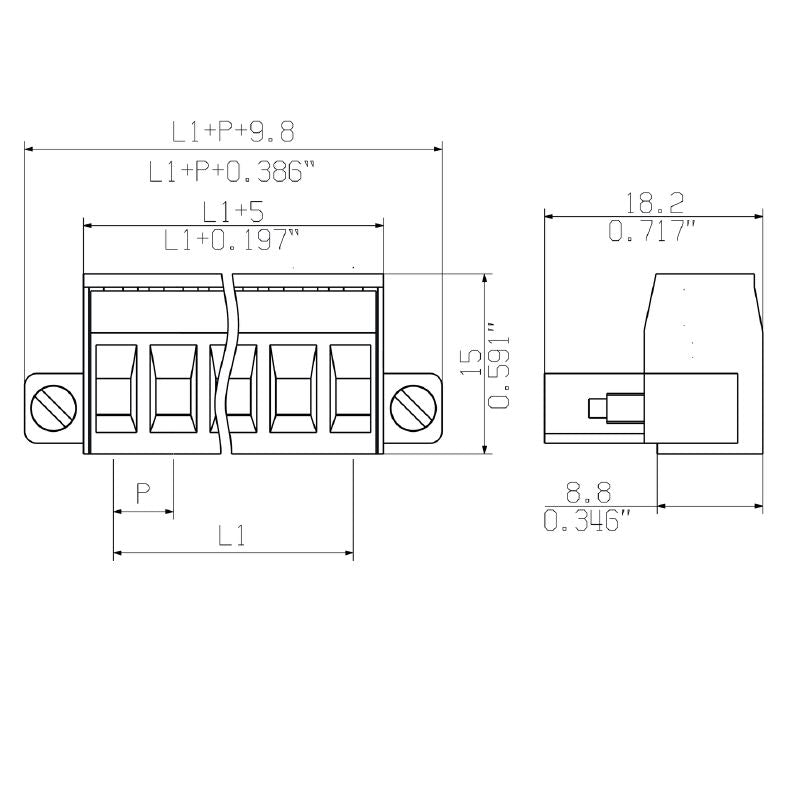

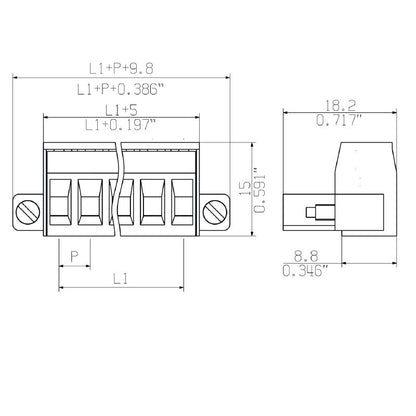

2644870000 - Compact 17-Pole Signal Connector for Wire Gauge 0.2mm² to 2.5mm² (Pack of 33)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 500/17/180F SN GN BX, a robust component that meets stringent standards including ROHS compliance and UL certification E60693 This product is engineered for efficient field connections via clamp applications, supporting a diverse range of wire sizes from 02mm² to 25mm² (AWG 30 to AWG 12) Packaged in a convenient box, it weighs just 3055 grams As part of the OMNIMATE Signal series, this connector boasts a compact design with a 5mm pitch and can effortlessly accommodate up to 17 poles.

It is built to withstand tough conditions, with a storage temperature range of -40°C to 70°C and a maximum operational temperature of 105°C.

Features and Benefits:

•Field connection type utilizing a clamping yoke method.

•Pale green color (RAL 6021).

•Single row with one series of pins.

•Maximum plugging cycles of 25.

•Fits standard screwdrivers with 0.6 x 3.5 dimensions.

•Compatible exclusively with OMNIMATE basic products.

Specifications:
