2644770000 - Robust 630V Connector for 0.2-2.5 mm² Wire Connections (Pack of 78)

2644770000 - Robust 630V Connector for 0.2-2.5 mm² Wire Connections (Pack of 78)

SKU: SKU: 2644770000   Download PDF

Select a Variant:
  • 2644770000 - Robust 630V Connector for 0.2-2.5 mm² Wire Connections (Pack of 78)
Qty:
Regular price Now $429.65   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $429.65 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the CPS 500/07/180F SN GN BX, your go-to solution for reliable field connections This connector is engineered for optimal performance and adheres to stringent IEC standards, capable of managing a maximum voltage of 630 V and a rated current of 22 A With compatibility for wire connections ranging from 02 to 25 mm², it also meets UL certifications with a voltage capacity of 300 V and a rated current of 15 A.

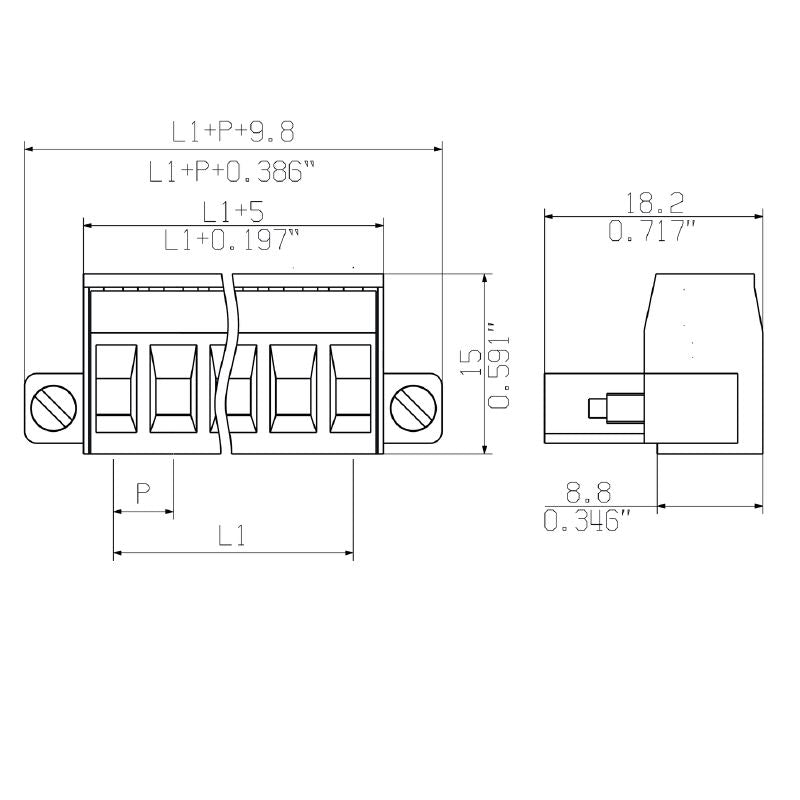

Designed with a clamping yoke connection method and a compact pitch of just 5 mm (0197 inches), this connector ensures dependable and efficient electrical connectivity for various applications.

Features and Benefits:

    •Lightweight design with a net weight of 13.05 g.

    •RoHS compliant with an exemption.

    •Usable in various environmental conditions with a wide operating temperature range.

    •Plugging cycles rated at 25.

Specifications:

 IEC Rating Voltage 630 V
 IEC Rated Current 22 A
 Wire Connection Method Clamping yoke connection
 Number of Poles 7
 Stripping Length 7 mm
 Clamping Torque Min 0.5 Nm
 Clamping Torque Max 0.55 Nm
 Number of Rows 1
 Storage Temperature Min -40 °C
 Storage Temperature Max 70 °C
 Operating Temperature Max 105 °C
 Insulation Resistance 500 MΩ
 UL 94 Flammability Rating V-0
 Wire Connection Cross Section AWG Min AWG 30
 Wire Connection Cross Section AWG Max AWG 12
