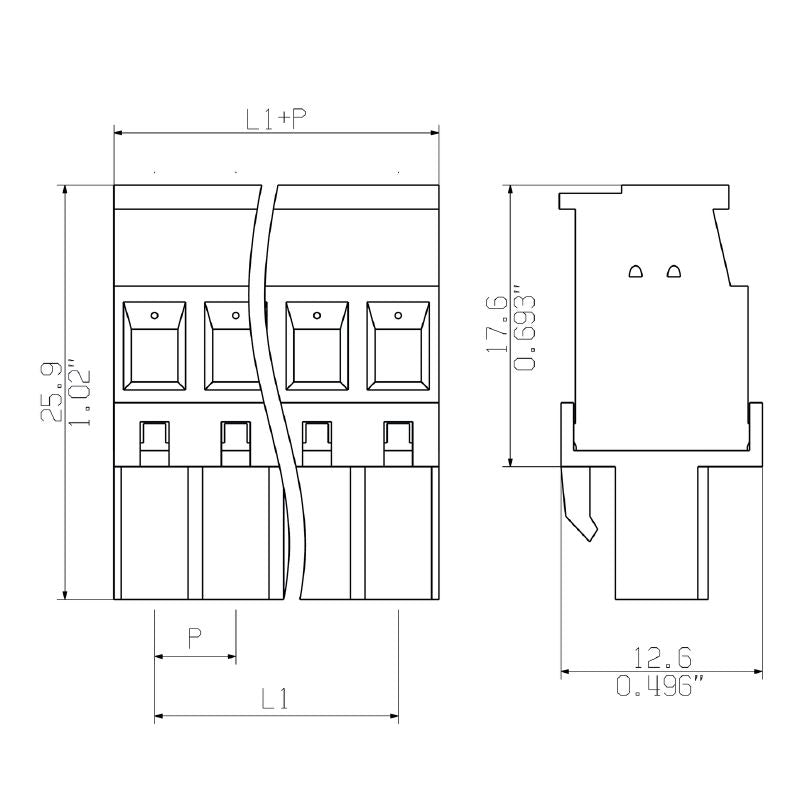

2644480000 - Compact 24-Pole OMNIMATE Signal Connector, 630V, 18A (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 500/24/270 SN GN BX, an ideal solution for field connections from the OMNIMATE Signal range Engineered with a sturdy clamping yoke connection method, this device supports a voltage rating of 630 V and a current capacity of 18 A as per IEC specifications Its design features a 24 pole configuration, tailored for wire cross-sections between 02 to 4 mm², making it compatible with various wire types such as solid, stranded, and flexible cables.

Optimized for ease of use, the compact unit has a stripping length requirement of just 7 mm and functions efficiently within a broad temperature spectrum of -40 °C to 105 °C Moreover, it adheres to RoHS standards and has undergone rigorous testing to ensure longevity across numerous plugging cycles, guaranteeing dependable performance for your connectivity needs.

Features and Benefits:

•Clamping yoke connection method.

•Compact design with a pitch of 5 mm.

•Wide operating temperature range from -40 °C to 105 °C.

•Compliant with RoHS and REACH regulations.

•Suitable for various wire types including solid, stranded, and flexible.

Specifications:
