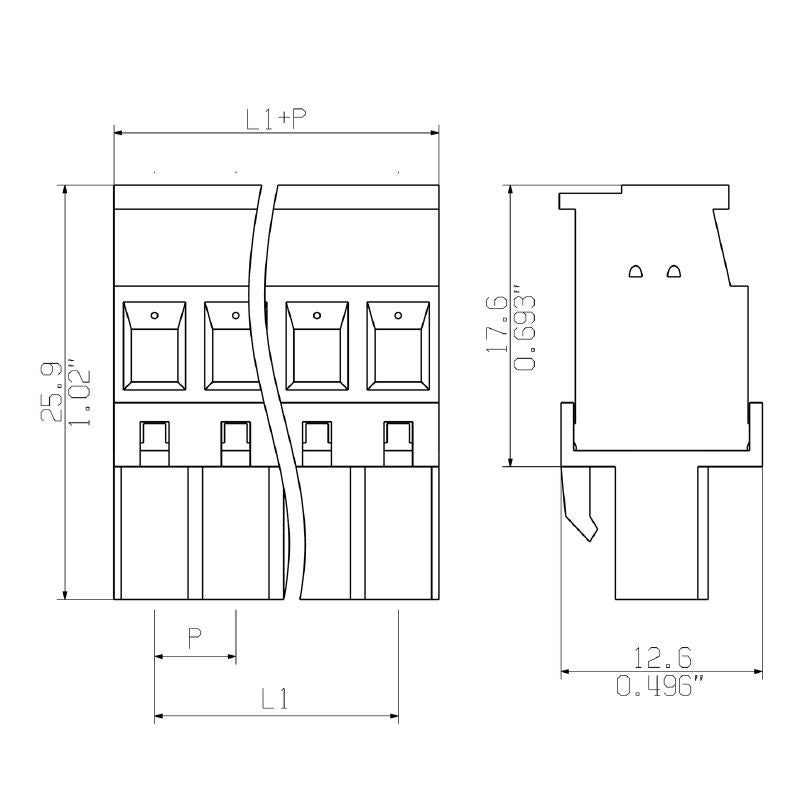

2644470000 - 23-Pole Wire Connector, 0.2-4 mm², RoHS & UL Compliant (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 500/23/270 SN GN BX, a versatile product that meets stringent environmental standards, including RoHS and UL certification (E60693) This component is engineered to accommodate a range of wire sizes, specifically clamping from 02 mm² to 4 mm² (AWG 26 to AWG 14) With a rated voltage of 630 V and a current rating of 18 A under IEC specifications, it also offers performance up to 300 V and 15 A per UL standards.

Weighing in at 4715 g, this product is housed in a sturdy box and features a configuration supporting up to 23 poles in a single row Its construction includes a pale green insulating material coupled with copper alloy contacts, ensuring optimal conductivity and reliability.

Features and Benefits:

•Compatible exclusively with OMNIMATE basic products.

•Features a clamping yoke connection for secure wire attachments.

•Can function at maximum operating temperatures of 105 °C.

•Storage temperature range from -40 °C to 70 °C.

•Built to endure plugging cycles up to 25 times.

•Insulation resistance measures at 500 MΩ.

•Includes various connection methods for different wire types.

Specifications:
