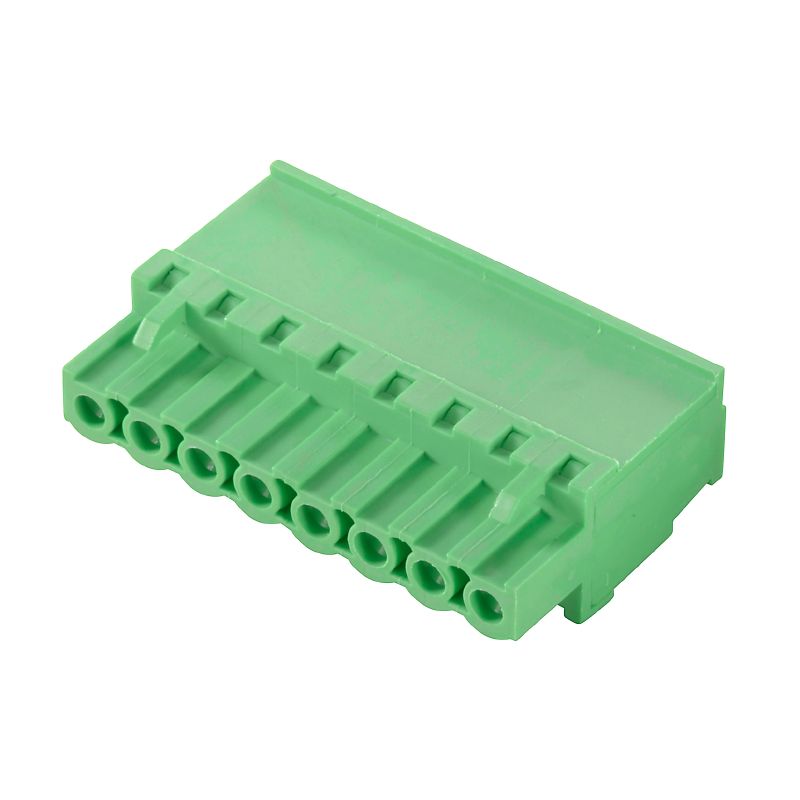

2644260000 - Compliant Connection Component, 0.2-4mm², 630V, UL Certified (Pack of 216)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 500/02/270 SN GN BX, a reliable connection component that meets both IEC and UL standards Capable of handling a maximum voltage of 630 V, it operates efficiently with a rated current of 18 A, accommodating wire cross-sections ranging from 02 to 4 mm² For UL specifications, it supports up to 300 V at 15 A while ensuring compatibility with various AWG sizes Packaged securely in a box, this product is RoHS compliant and comes with all necessary certifications, making it an excellent choice for your electrical connection needs.

Features and Benefits:

•Designed for field connection.

•Utilizes a clamping yoke connection method.

•Compact pitch of 5 mm.

•Support for flexible, solid, and stranded conductors.

Specifications:
