Description:

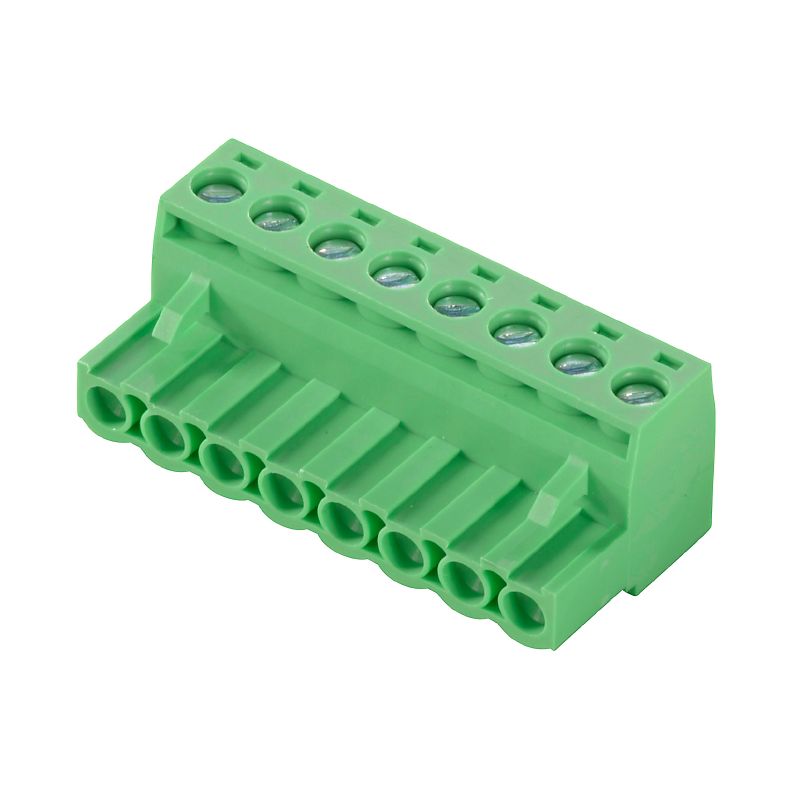

Introducing the CPS 500/20/180 SN GN BX, a reliable connection component engineered for field connections This product is part of the OMNIMATE Signal series and features a 5 mm pitch with 20 poles arranged in a single row Measuring approximately 95 mm in length, it offers a clamping torque range of 05 Nm to 055 Nm The connector is designed for up to 25 plugging cycles, with maximum forces of 6 N for pulling and 9 N for plugging.

Constructed from a robust copper alloy base and insulated with durable PA material, this pale green connector closely resembles RAL 6021, combining functionality with a sleek appearance.

Features and Benefits:

•Has a clamping screw of M 3.

•Stripping length of 7 mm.

•Insulation resistance is rated at 500 MΩ.

•UL 94 flammability rating of V-0.

•Suitable for a range of wire cross-sections from 0.2 mm² to 4 mm².

Specifications:

Rated voltage for IEC	630 V / 22 A / 0.2 - 2.5 mm²
Rated voltage for UL	300 V / 15 A / AWG 30 - AWG 12
Number of poles	20
Pitch in mm	5 mm

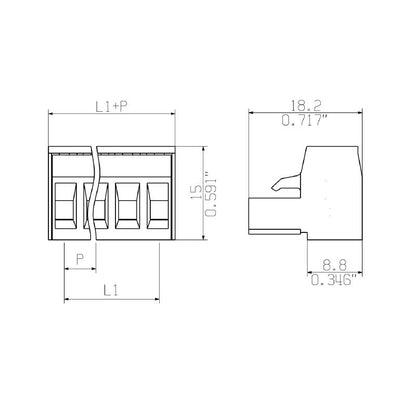

Dimensions	95 mm
Storage temperature (min)	-40 °C
Storage temperature (max)	70 °C
Operating temperature (max)	105 °C
Plugging cycles	25
Tightening torque (min)	0.5 Nm
Tightening torque (max)	0.55 Nm
