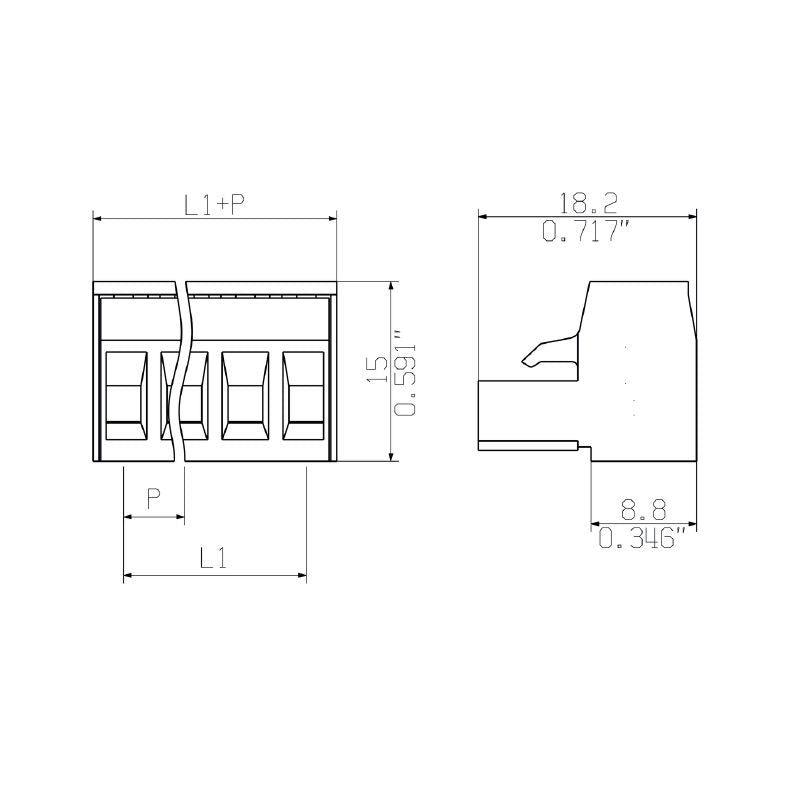

2644080000 - High-Performance Electrical Connector with 22A Capacity (Pack of 105)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 500/07/180 SN GN BX, a reliable component designed to meet ROHS and UL standards This device excels in electrical performance, accommodating IEC specifications of 630 V and 22 A for conductor sizes ranging from 02 to 25 mm² For wire sizes between AWG 30 and AWG 12, it carries a UL rating of 300 V and 15 A Packaged in a convenient box, it weighs just 1225 grams, making it part of the OMNIMATE Signal series.

Featuring clamping yoke connections for easy field wiring, this product boasts an exceptional insulation resistance of 500 MΩ Crafted with durability in mind, it includes copper alloy contacts and a flammability rating of V-0 With an operating temperature range from -40 to 105 °C, it offers versatility for a variety of applications.

Features and Benefits:

•Compliant with ROHS and UL standards.

•Suitable for various wire sizes (0.2 mm² to 2.5 mm² and AWG 30 to AWG 12).

•Box packaging with a net weight of 12.25 grams.

•Insulation resistance of 500 MΩ.

•Durable copper alloy contacts.

•Operating temperature range of -40 to 105 °C.

•Field connections in electrical applications.

Specifications:
