2643940000 - 630V Rated Current 18A CPS Electrical Connector (Pack of 24)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

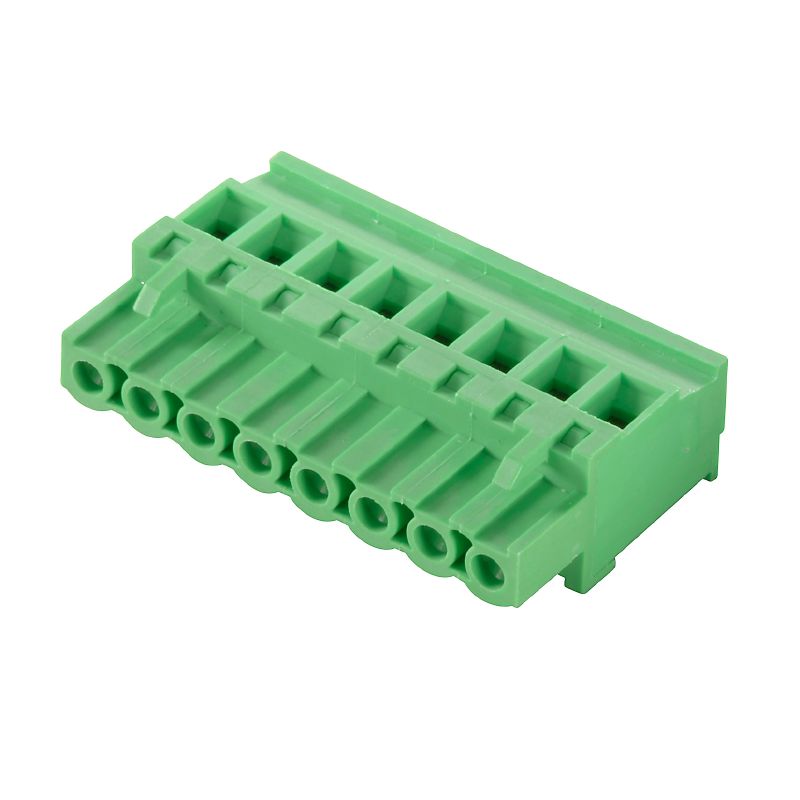

Description:

The CPS 500/16/90 SN GN BX is engineered for superior performance, boasting a maximum voltage of 630 V and a rated current of 18 A It accommodates conductor sizes from 02 to 4 mm², adhering to IEC standards, as well as AWG 26 to AWG 14 under UL standards This product is delivered in boxes and has a net weight of 328 grams Additionally, it meets RoHS compliance and holds a UL certification, identified by the certificate number E60693, ensuring reliability and safety in various applications.

Features and Benefits:

•Field connection type.

•Clamping yoke connection for wire connection method.

•Insulating material made of PA.

•Same colour as RAL 6021.

•UL 94 flammability rating of V-0.

•Max pulling force of 6 N per pole.

•Meets long term storage guidelines with specific temperature and humidity conditions.

•Ideal for use with OMNIMATE basic products.

Specifications:
