2643930000 - 70mm 15-Pole Connection Terminal with High Insulation Resistance (Pack of 30)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

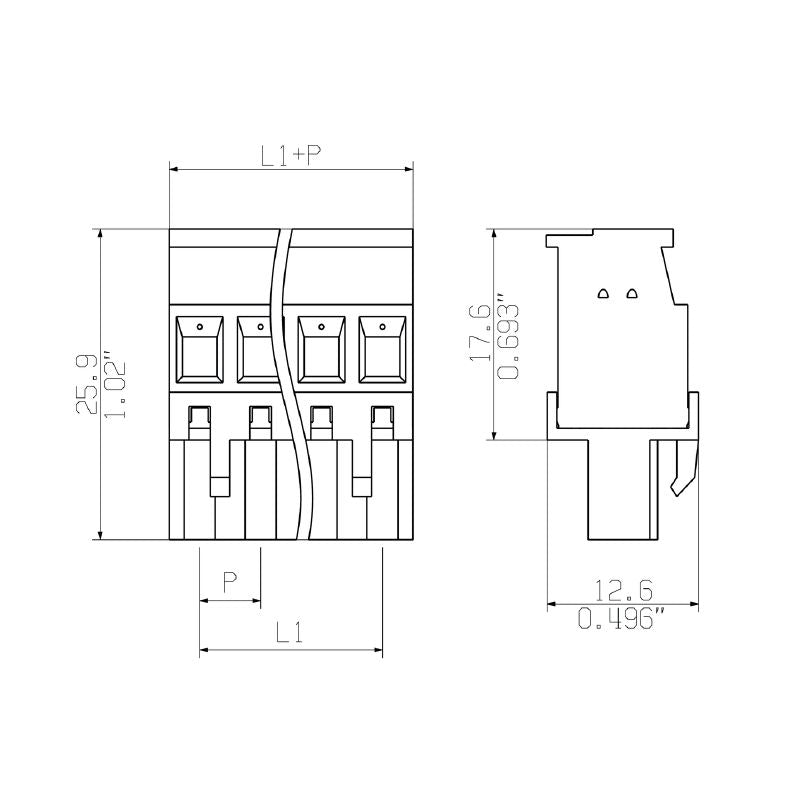

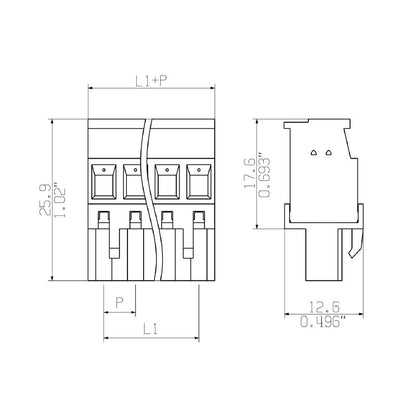

Introducing the CPS 500/15/90 SN GN BX field connection terminal, an ideal solution for secure wire connections using a clamping yoke mechanism With a compact pitch of 5 mm and accommodating 15 poles, this terminal measures 70 mm in length It requires a stripping length of 7 mm for installation and supports a tightening torque ranging from 05 Nm to 055 Nm Built for durability, it performs reliably for approximately 25 cycles and can withstand plugging forces of up to 9 N and pulling forces of 6 N for each pole.

Crafted from high-quality insulating PA material, this connector showcases excellent insulation resistance and is rated V-0 for flammability Additionally, it adheres to RoHS standards and supports wire sizes between 02 mm² and 4 mm², making it versatile for various applications.

Features and Benefits:

•Compliant with RoHS exemption for lead.

•Suitable for clamping ranges varying from 0.2 mm² to 4 mm².

•Insulation resistance rating of 500 MΩ.

•Temperature tolerance from -40 °C to 105 °C.

•Can handle a rated current of 18 A and rated voltage of 630 V.

Specifications:
