2643860000 - RoHS Compliant 630V Connector, 18A, Wire Size AWG 26-14 (Pack of 54)

SKU: SKU: 2643860000 Download PDF

Select a Variant:

2643860000 - RoHS Compliant 630V Connector, 18A, Wire Size AWG 26-14 (Pack of 54)

SET THE QTY:

Now $328.45 Web pricing policy

~~BEFORE $0.00~~ Now $328.45 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

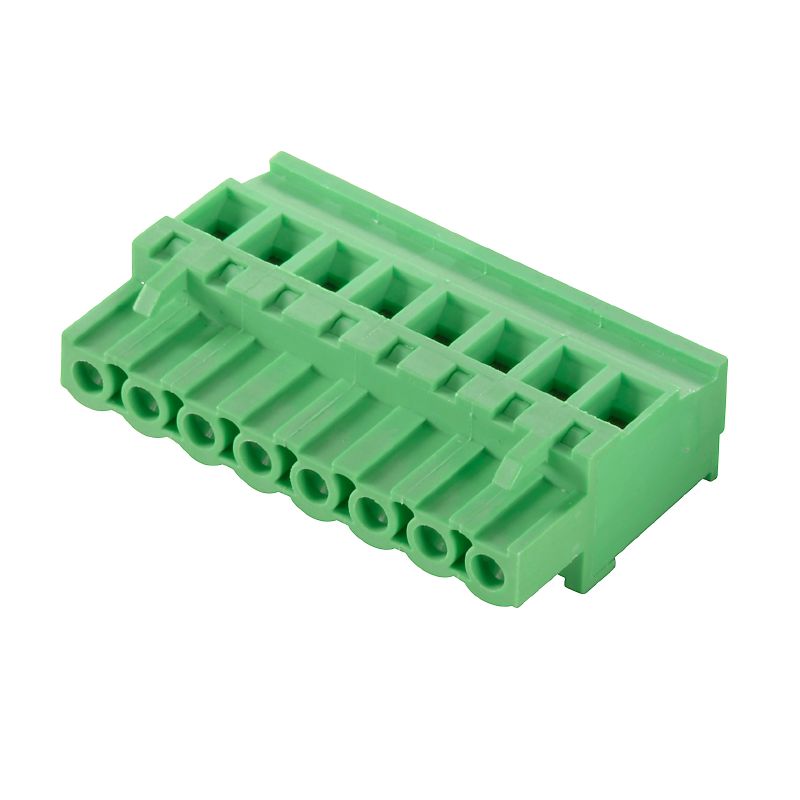

Presenting the CPS 500/08/90 SN GN BX, a robust product that complies with RoHS guidelines and meets UL certification standards This component boasts an IEC voltage rating of 630 V and can accommodate currents up to 18 A, with a cross-sectional range suitable for wires from 02 to 4 mm² Additionally, it aligns with UL specifications for a maximum of 300 V and 18 A, accommodating wire sizes from AWG 26 to AWG 14.

Packaged securely in boxes, each unit weighs 164 grams, making it a reliable choice for your electrical needs.

Features and Benefits:

•Compliant with RoHS regulations and associated exemptions.

•Flexible wire connections using clamping yoke method.

•Endures up to 25 plug cycles.

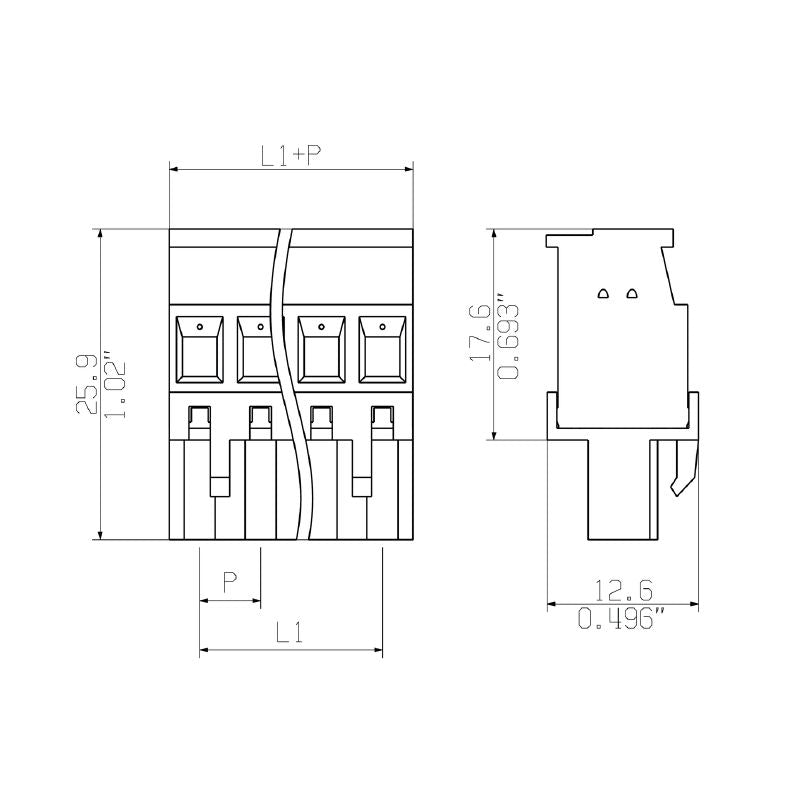

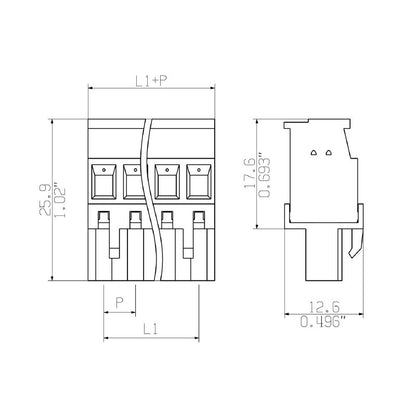

•Single-row design with a pitch of 5 mm.

•OMNIMATE Signal connections.

Specifications:

Approvals	Compliant with RoHS and UL (Certificate No. E60693)
Insulating Material	PA
Insulation Resistance	500 MΩ

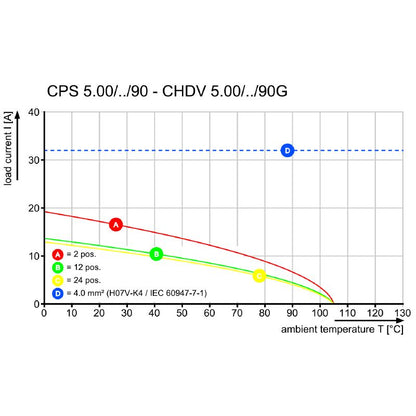

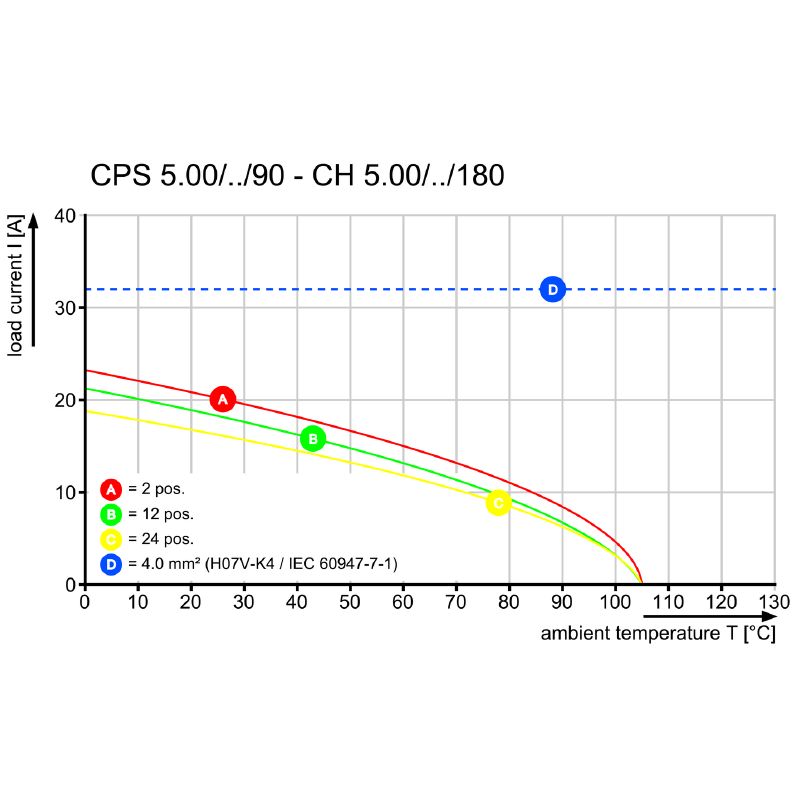

Rated Current	18 A
Rated Voltage	630 V
Number of Poles	8
Clamping Range (min)	0.2 mm²
Clamping Range (max)	4 mm²
Stripping Length	7 mm
Tightening Torque (min)	0.5 Nm
Tightening Torque (max)	0.55 Nm
Plugging Force per Pole (max)	9 N
Pulling Force per Pole (max)	6 N
Storage Temperature (min)	-40 °C
Storage Temperature (max)	70 °C
Operating Temperature (max)	105 °C
