2642990000 - 3.81mm Field Connection Unit, 16 Poles, 8A, 320V (Pack of 56)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

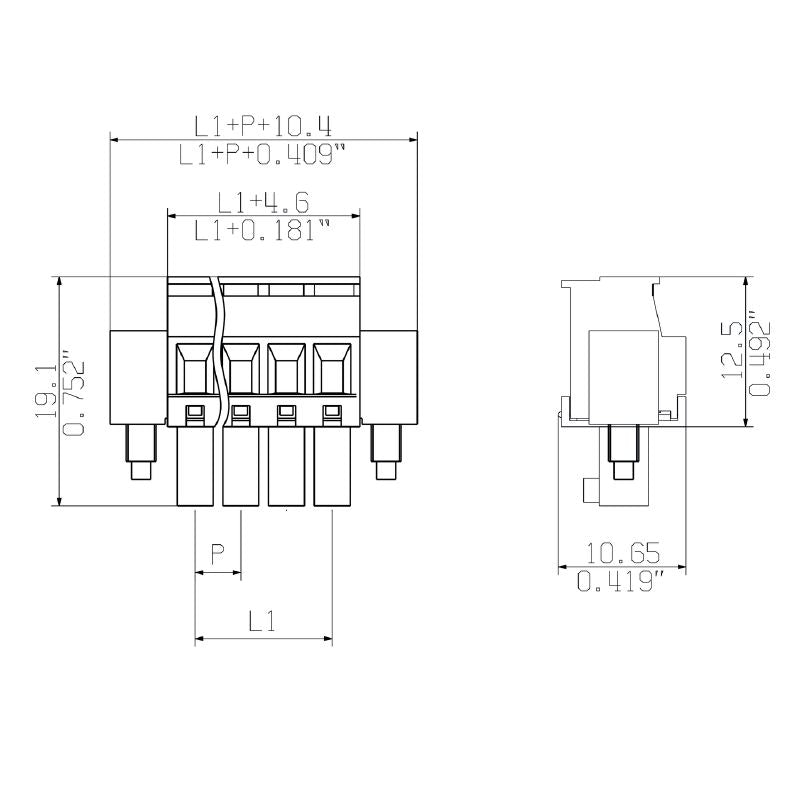

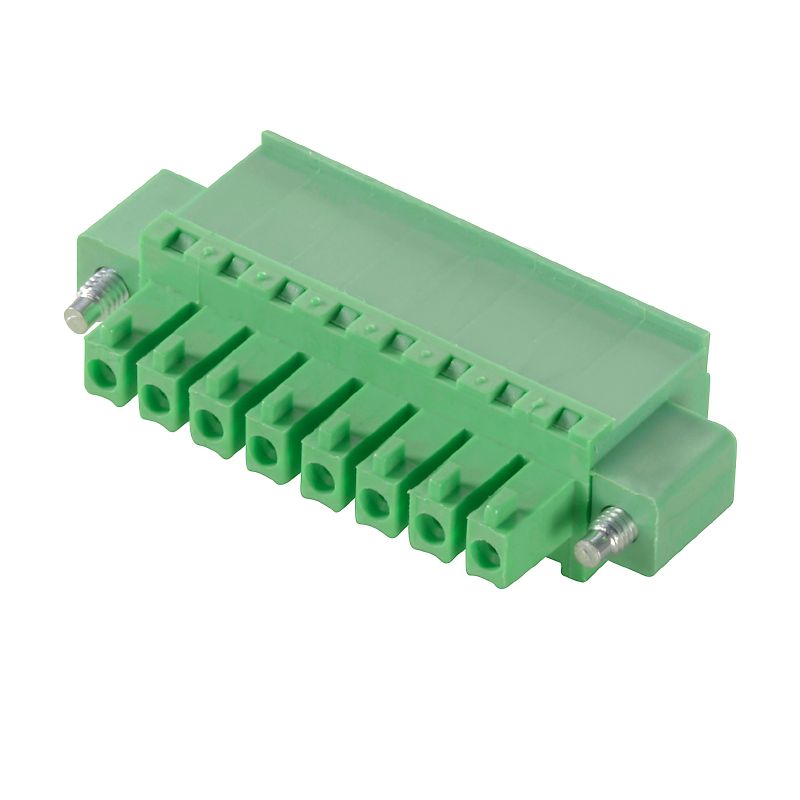

Introducing the CPS 381/16/270F SN GN BX, an exceptional field connection unit crafted for versatile applications With a rated voltage of 320 V and a current handling capability of 8 A, this product guarantees reliable performance Designed with a clamping yoke connection method and offering a compact pitch of 381 mm (015 inches), it features a 270° conductor outlet for efficient wiring and consists of 16 poles.

Housed in a protective box, it ensures visibility and safety during use Meticulously developed to meet various compliance standards, including RoHS, UL, and CSA, this connection unit is both eco-friendly and safe for a range of environments.

Features and Benefits:

•Compliant with RoHS exemptions.

•Lightweight at 13.44 g.

•Approved for long-term storage.

•Simple installation with a clamping yoke connection method.

•Supports various wire sizes from AWG 30 to AWG 16.

Specifications:
