2642970000 - CPS Connector 320V, 8A for AWG 30-16 Wiring (Pack of 62)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

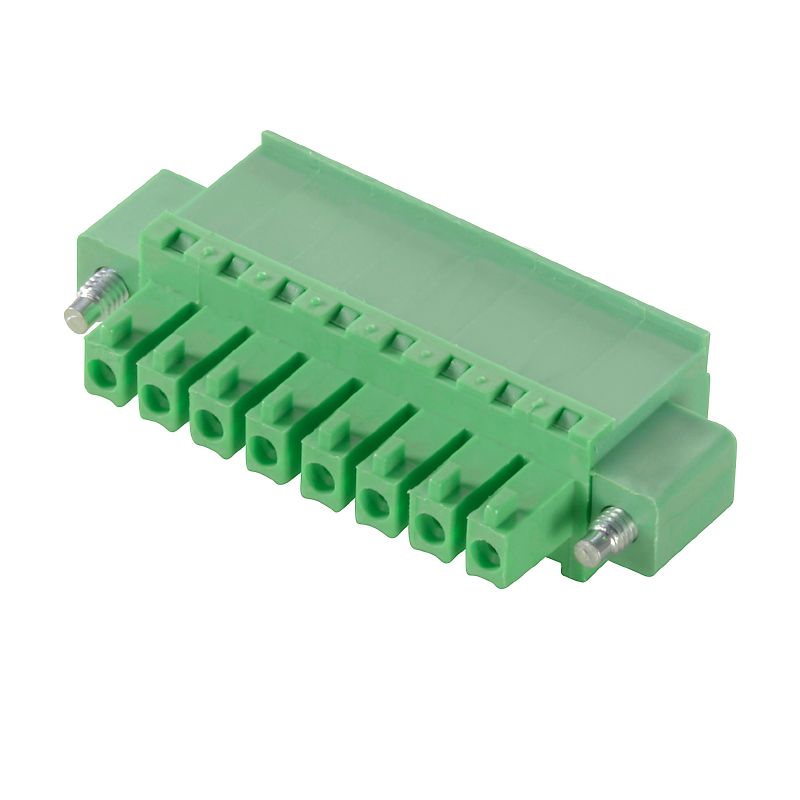

Introducing the CPS 381/14/270F SN GN BX connector, a highly compliant accessory adhering to RoHS regulations This component is capable of handling an operating voltage of 320 V and supports a maximum current of 8 A, accommodating wire sizes ranging from 02 to 15 mm² For those requiring UL compliance, this connector operates effectively at 300 V while maintaining the same current capacity and wire specifications between AWG 30 and AWG 16.

Each unit is shipped in a box and weighs 1186 grams, making it a reliable choice for your connectivity needs.

Features and Benefits:

•Field connection type with clamping yoke method for wire connection.

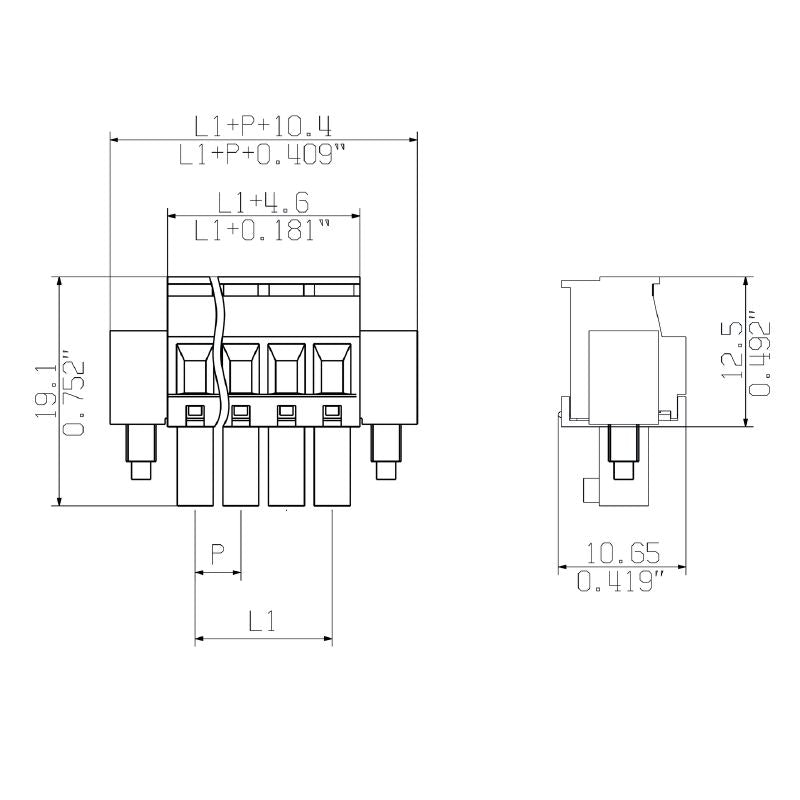

•Pitch of 3.81 mm, accommodating 14 poles with a single row design.

•Offers a conductor outlet direction of 270°.

•Durable design with a tightening torque range of 0.22 Nm to 0.25 Nm.

•Compatible with OMNIMATE basic products.

•Meet several compliance standards including UL and RoHS.

Specifications:
