2642930000 - 3.81mm Pitch Field Connection Terminal Block, 10 Poles (Pack of 84)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

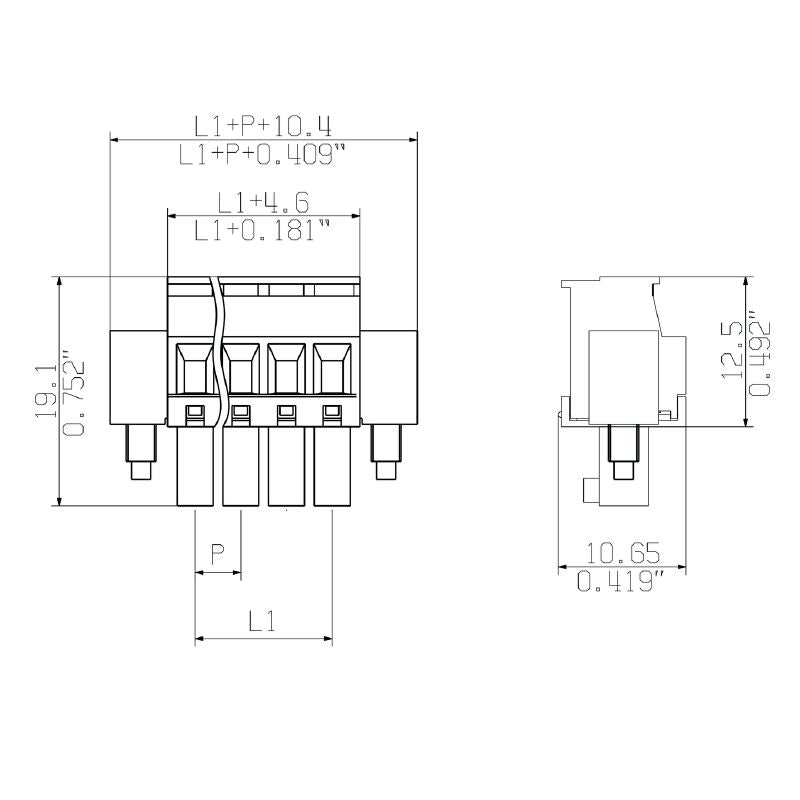

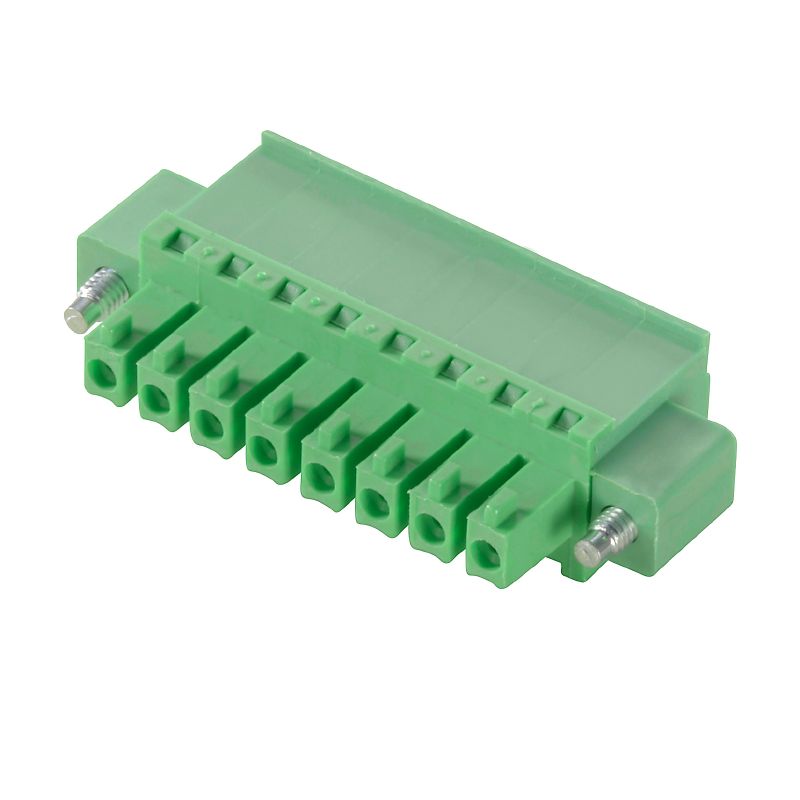

Discover the OMNIMATE basic series connector, designed specifically for seamless field connections This model features a clamping yoke connection with a compact pitch of 381 mm and a 270° conductor outlet, providing flexibility and ease of use Able to support up to 10 poles, it is compatible with conductor sizes from 02 mm² to 15 mm² Weighing just 87 g, it combines lightweight convenience with robust performance.

This product is RoHS compliant and UL certified, ensuring adherence to safety standards It comes securely packaged in a box and can be stored in temperatures of up to 70°C.

Features and Benefits:

•Packaging via box.

•Compatible exclusively with OMNIMATE basic products.

•Minimum and maximum tightening torque specifications provided.

•Capable of supporting a wide conductor range.

•Field connection applications.

Specifications:
