2642720000 - 3.81mm Field Connection Clamping Yoke with 180° Outlet (Pack of 126)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

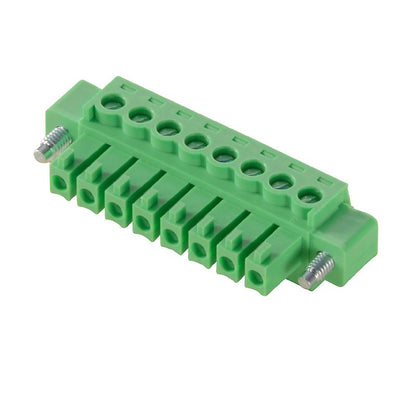

Introducing the CPS 381/08/180F SN GN BX, a reliable solution for field connections, featuring an efficient clamping yoke connection method With a precision pitch of 381 mm and a conductor outlet angle of 180°, this component accommodates a variety of wire sizes It ensures a firm connection with a tightening torque range of 022 Nm to 025 Nm Designed for durability, it can withstand 25 plugging cycles, effectively managing both pulling and plugging forces for dependable performance in various applications.

Features and Benefits:

•Clamping yoke connection method.

•Pitch of 3.81 mm.

•Conductor outlet direction of 180°.

•Provides a tightening torque of 0.22 Nm to 0.25 Nm.

•Suitable for various wire sizes ranging from AWG 30 to AWG 16.

•Designed to endure 25 plugging cycles.

Specifications:
