2642660000 - 180° Field Connection Clamp, 3.81mm Pitch, 8A, 320V (Pack of 300)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the convenience of this specialized field connection component, crafted for clamping yoke connections and adhering to multiple international standards Operating optimally at a voltage of 320 V and a current capacity of 8 A, it accommodates conductor cross-sections from 02 mm² to 15 mm² (equivalent to AWG 30 to AWG 16) This product is packaged in a box and has a lightweight of just 23 grams.

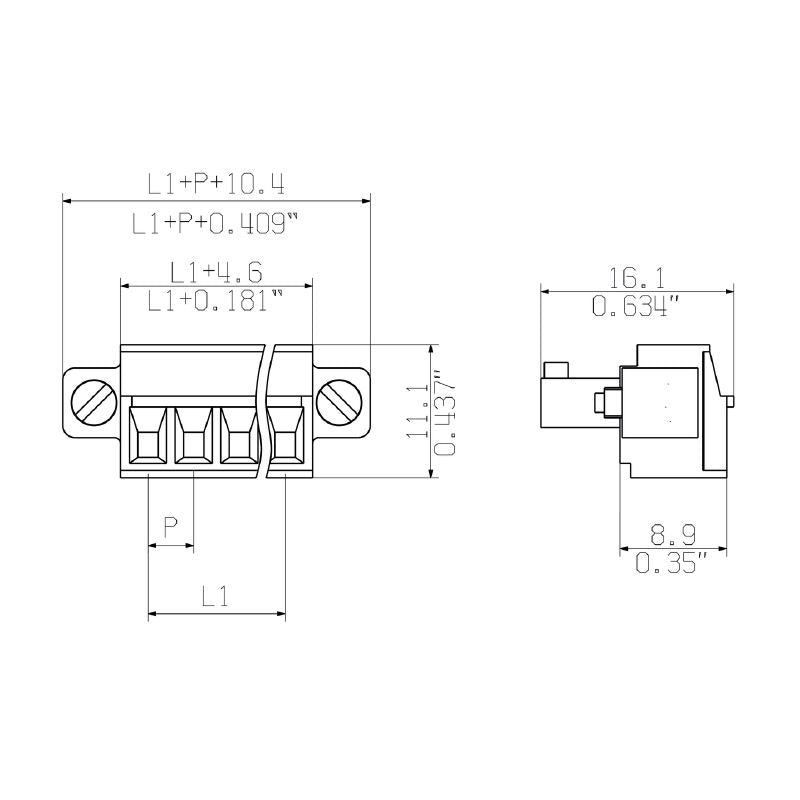

Featuring a 180° conductor outlet for versatile installation and a pitch of 381 mm, it utilizes an M 20 clamping screw, with a tightening torque range between 022 Nm and 025 Nm This component also withstands a maximum pulling force of 1 N and supports a plugging force of up to 10 N, offering a longevity of up to 25 plugging cycles Perfect for various applications, this reliable connection solution ensures efficiency and compliance with industry standards.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Insulating material made of PA.

•UL 94 flammability rating of V-0.

•Specially designed only for OMNIMATE basic products.

Specifications:
