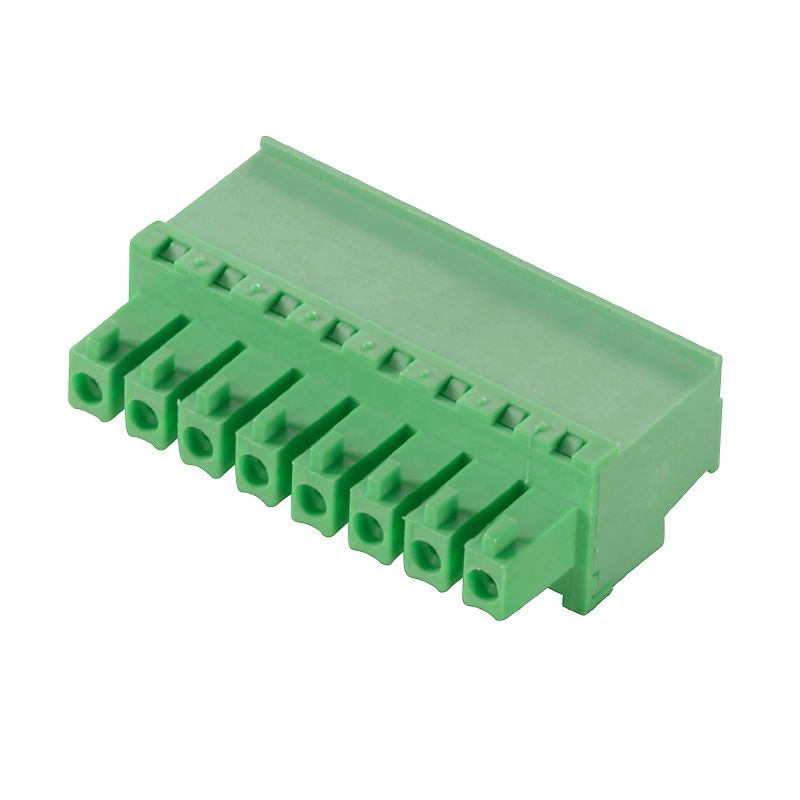

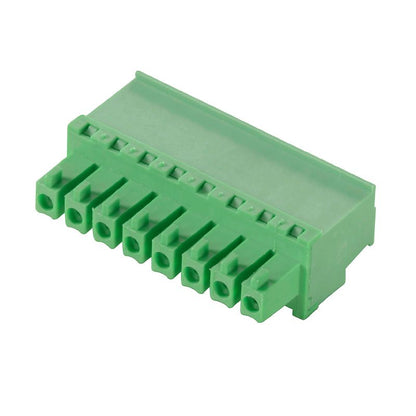

2642330000 - Compact Clamping Yoke Connection Component with 270° Outlet (Pack of 144)

2642330000 - Compact Clamping Yoke Connection Component with 270° Outlet (Pack of 144)

SKU: 2642330000 Download PDF

Variant:
  • 2642330000 - Compact Clamping Yoke Connection Component with 270° Outlet (Pack of 144)
Now $811.55
BEFORE   $0.00 Now $811.55
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 381/07/270 SN GN BX, an essential field connection component crafted for efficient clamping yoke connections This unit accommodates wire sizes from 02 to 15 mm² and is designed to operate at a maximum voltage of 320 V and current of 8 A as per IEC standards, as well as 300 V and 8 A in accordance with UL standards Part of the OMNIMATE basic series, it boasts a 270° outlet direction for conductors and features a compact design, making it a reliable choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS exemptions.

    •Lightweight at 5.53 g.

    •Plugging cycles rated for 25.

    •Material rated UL 94 V-0 for flammability.

    •Only compatible with OMNIMATE basic products.

Specifications:

 Order No. 2642330000
 GTIN (EAN) 4050118644647
 Frequency of use 8 A
 Pitch 3.81 mm
 Number of poles 7
 Conductor outlet direction 270°
 Stripping length 6.5 mm
 Tightening torque (min) 0.22 Nm
 Tightening torque (max) 0.25 Nm
 Clamping screw M 2
 Storage temperature (min) -40 °C
 Storage temperature (max) 70 °C
 Operating temperature (max) 105 °C
 Clamping range (min) 0.2 mm²
 Clamping range (max) 1.5 mm²
 Wire connection cross section AWG (min) AWG 30
 Wire connection cross section AWG (max) AWG 16
 Rated voltage (Use group B) 300 V
 Rated current (Use group B) 8 A
 Insulating material PA
 Contact base material Copper alloy
 Contact material Copper alloy
 Contact surface tinned
 Tinning type matt
