2642300000 - 3.81mm Pale Green Connector, 0.2-1.5mm², 8A, 320V (Pack of 258)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

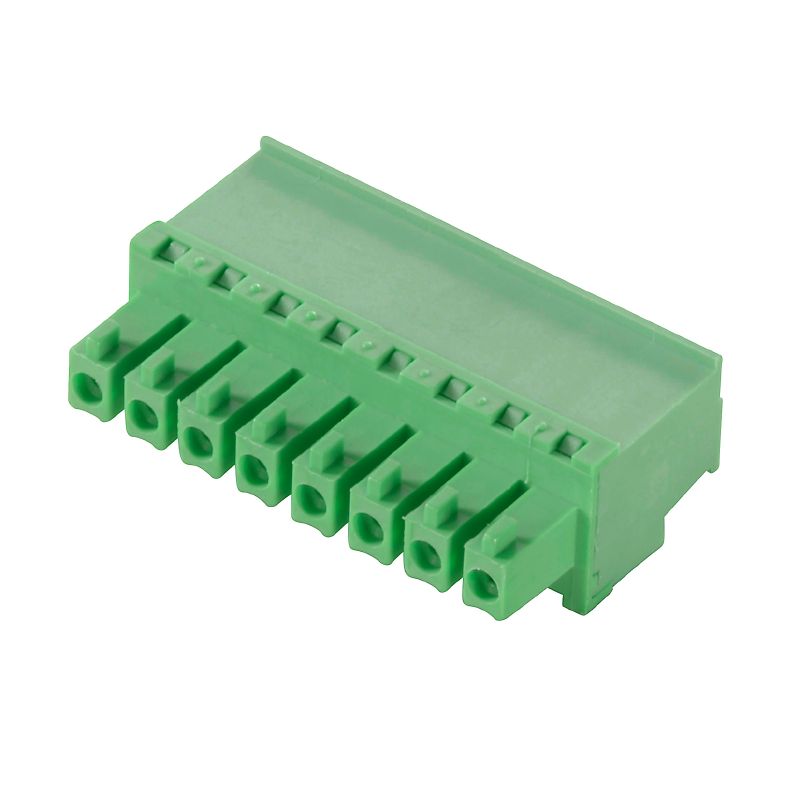

Introducing the CPS 381/04/270 SN GN BX connector, an essential component for seamless field connections within the OMNIMATE basic product range This connector accommodates wire sizes from 02 mm² to 15 mm² and is compatible with various wire gauges, including AWG 30 to AWG 16 Meeting IEC, UL, and RoHS standards, it guarantees reliability in your projects With a pitch of 381 mm, it can handle operational capacities of up to 8 A and 320 V, making it a robust choice for your needs.

Finished in a subtle pale green hue, this connector is designed to perform well in temperatures ranging from -40 °C to 105 °C It comes packaged appropriately for safe shipping, ensuring your order arrives in perfect condition.

Features and Benefits:

•Compliant with RoHS with an exemption status.

•Suitable for diverse wire connection methods including clamping yoke connection.

•Easy installation with a minimal stripping length of 6.5 mm.

•Plugging cycles rating of up to 25.

•Designed for long-term storage under specific environmental conditions.

Specifications:
