Product Information

Description:

Introducing a reliable solution from the CPS series, this product features a durable field connection secured with a clamping yoke method With a pitch of 381 mm, it accommodates a range of conductor sizes from 02 mm² to 15 mm² (AWG 30 to AWG 16) Equipped with 17 poles, the device has specified tightening torque for optimal performance It is built to endure storage temperatures between -40 °C and 70 °C, and it operates efficiently at a maximum temperature of 105 °C.

The packaging is thoughtfully designed to ensure safe transportation.

Features and Benefits:

•Compliant with RoHS exemption.

•Includes 180° conductor outlet direction.

•Designed for durability with a UL 94 flammability rating of V-0.

•Utilizes a copper alloy for contact materials, ensuring reliable connectivity.

•Compatible with OMNIMATE basic products.

Specifications:

Rated voltage (IEC)	320 V
Rated current	8 A
Number of poles	17
Clamping range (min)	0.2 mm²
Clamping range (max)	1.5 mm²
Stripping length	6.5 mm
Tightening torque (min)	0.22 Nm
Tightening torque (max)	0.25 Nm
Plugging cycles	25

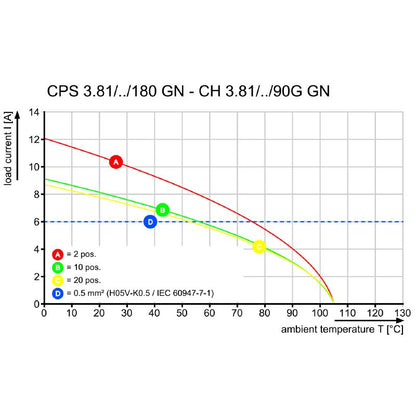

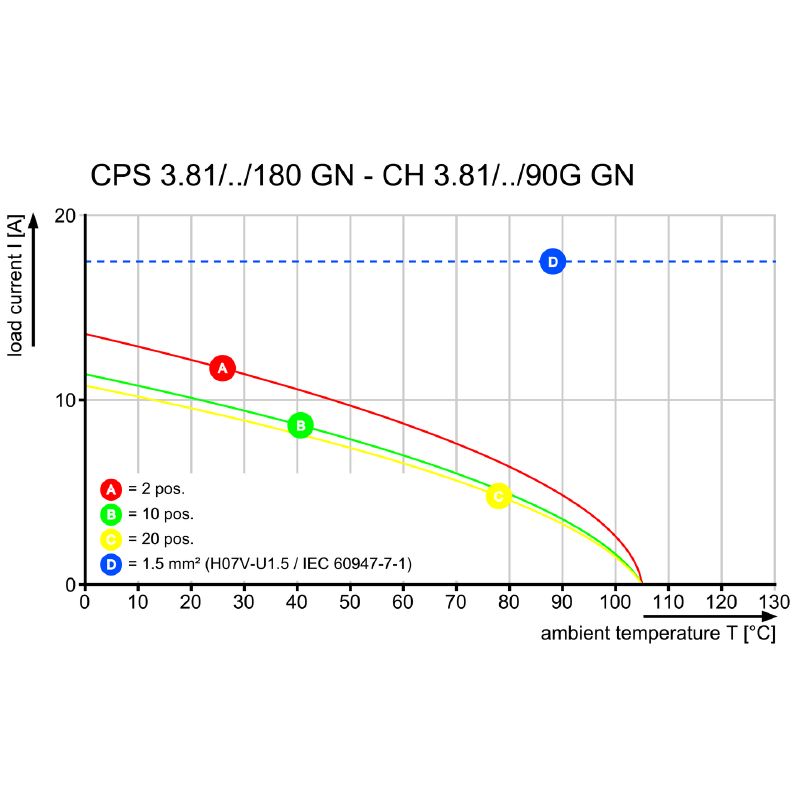

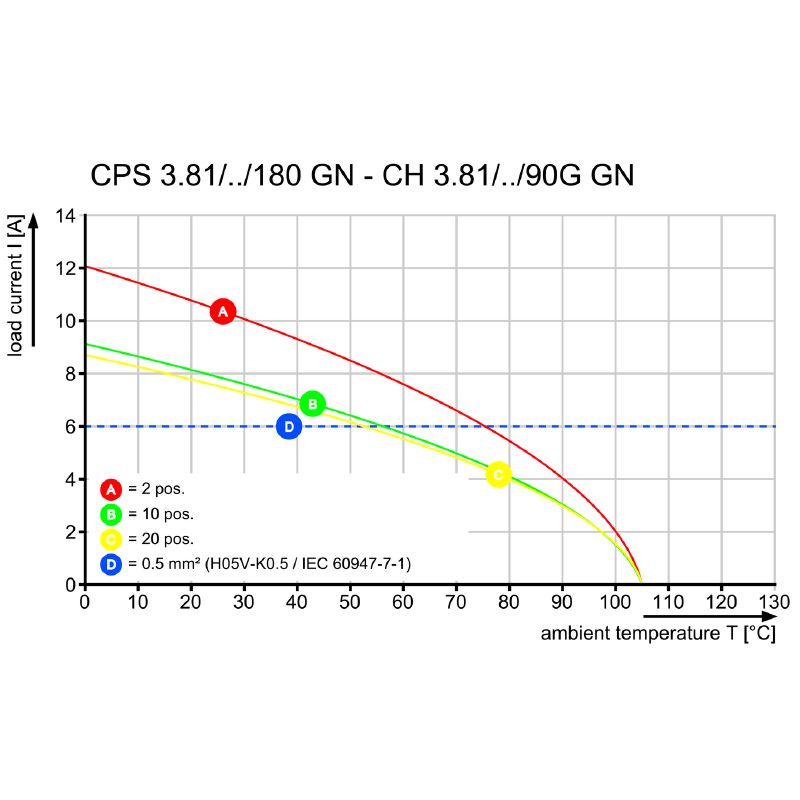

Operating temperature (max)	105 °C
Storage temperature (min)	-40 °C
Storage temperature (max)	70 °C
