2642190000 - 12-Pole 3.81mm Electrical Connector, 8A, 320V, RoHS Compliant (Pack of 105)

Description:

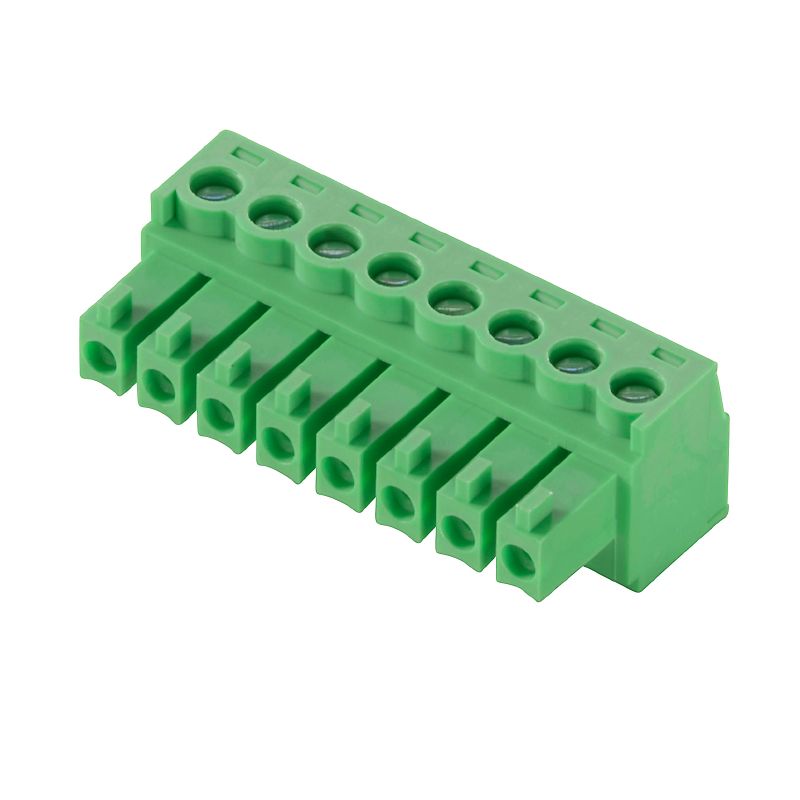

Introducing the CPS 381/12/180 SN GN BX connector, engineered for outstanding connectivity with a maximum voltage of 320 V and a current capacity of 8 A This versatile connector accommodates wire sizes from 02 to 15 mm² according to IEC standards and AWG 30 to AWG 16 according to UL standards Packaged in a compact box, it adheres to RoHS regulations, ensuring safety and environmental compliance Weighing just 9 grams, this connector features a clamping yoke mechanism that provides a 180-degree exit direction for conductors.

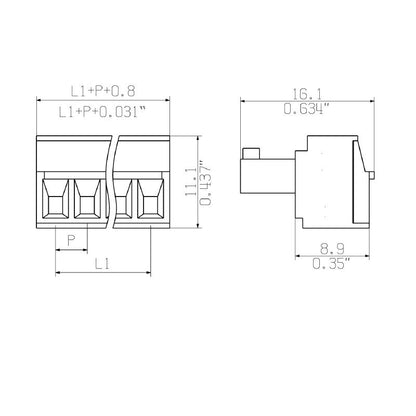

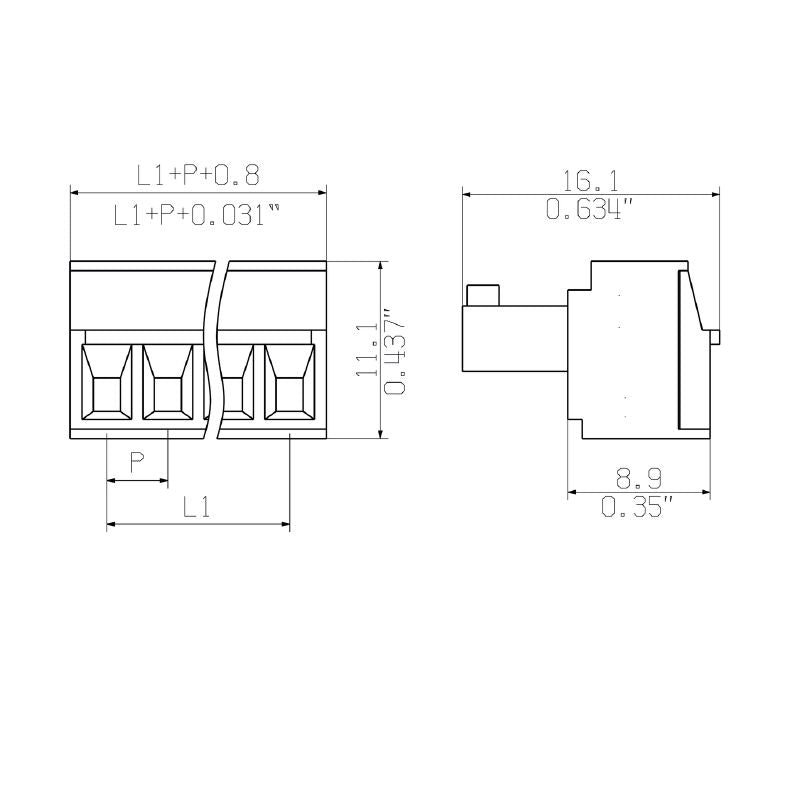

With a pitch of 381 mm (015 inches) and a single-row design that supports 12 poles, it allows for stripped wire lengths of 65 mm The tightening torque is adjustable between 022 to 025 Nm, and it can endure up to 25 plugging cycles Constructed with durable PA insulation and tinned copper alloy contacts, this connector is built to last and perform reliably in various applications.

Features and Benefits:

•Use of copper alloy in contact material.

•Insulating material classified as group I.

•RoHS compliant with exemption.

•Long-term storage capability up to 36 months under specific conditions.

•Field connection in electrical systems.

•Compatible only with OMNIMATE basic products.
