2642080000 - 20-Pole Connection Component with 90° Outlet, 8A Capacity (Pack of 56)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 381/20/90 SN GN BX connection component, expertly designed with a robust clamping yoke for optimal performance This versatile connection solution accommodates wire sizes from 02 mm² to 15 mm² and features 20 poles, allowing it to handle a rated current of up to 8 A Its 90° conductor outlet direction makes it ideal for a range of general applications that require reliable field connections.

Conforming to multiple electrical standards, this connector ensures both safety and efficiency in your setups.

Features and Benefits:

•Field connection method provides easy installation.

•Clamping yoke mechanism ensures a secure wire connection.

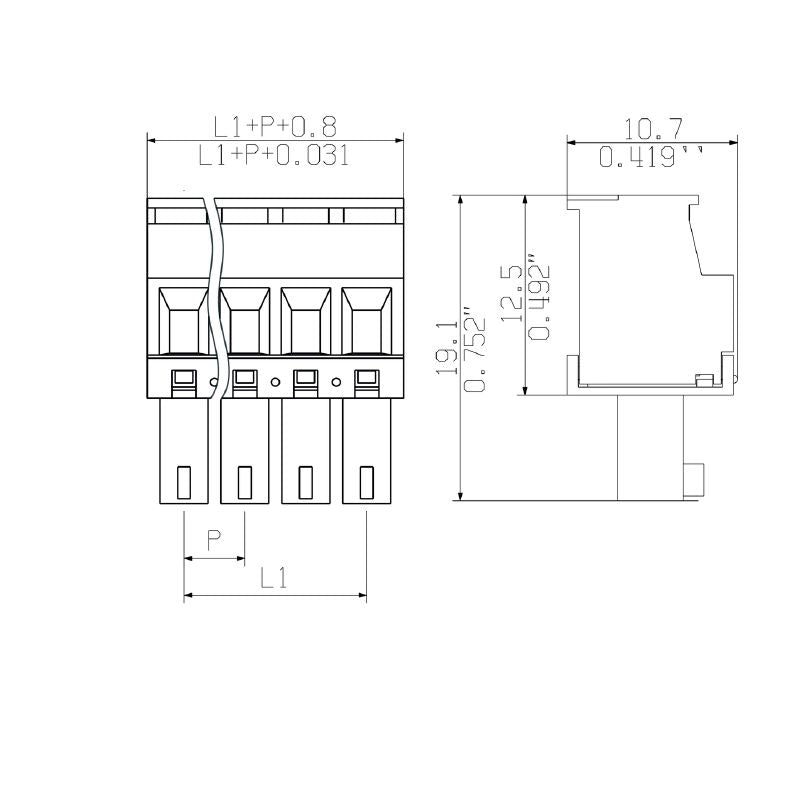

•Compact design with a 3.81 mm pitch.

•Lightweight at 15.8 g allows for flexible application.

•Compliant with RoHS regulations.

•High durability with a UL 94 flammability rating of V-0.

Specifications:
