2642020000 - IEC 320V Connector, 8A, 0.2-1.5mm² Clamping Range (Pack of 72)

2642020000 - IEC 320V Connector, 8A, 0.2-1.5mm² Clamping Range (Pack of 72)

SKU: 2642020000 Download PDF

Variant:
  • 2642020000 - IEC 320V Connector, 8A, 0.2-1.5mm² Clamping Range (Pack of 72)
Now $811.45
BEFORE   $0.00 Now $811.45
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

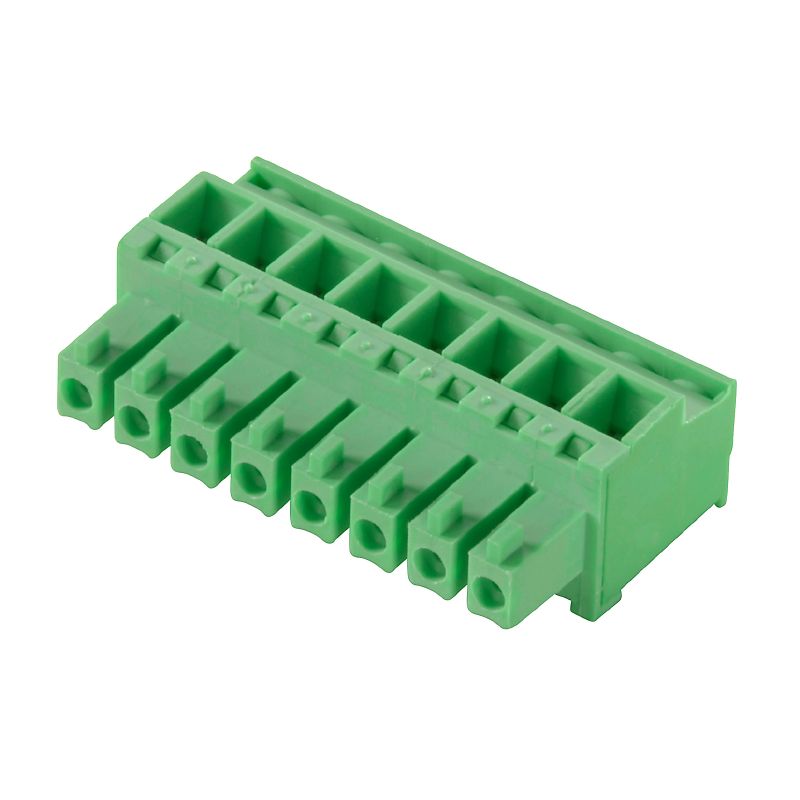

Introducing the CPS 381/14/90 SN GN BX connector, expertly designed for a variety of applications It accommodates up to 320 V and 8 A in IEC settings while supporting wire sizes from 02 to 15 mm² For UL standards, this connector operates at 300 V and 8 A, suitable for AWG 30 to AWG 16 wires Each unit is conveniently packaged in a box and weighs only 1106 grams, ensuring compliance with RoHS exemption guidelines.

Additionally, it adheres to environmental regulations concerning lead as a substance of very high concern (SVHC).

Features and Benefits:

    •Compliant with RoHS and includes exemptions.

    •Field connection method using a clamping yoke.

    •Compact design with a conductor outlet direction of 90°.

    •Suitable for a variety of wire connection cross sections.

Specifications:

 Order No. 2642020000
 GTIN (EAN) 4050118644951

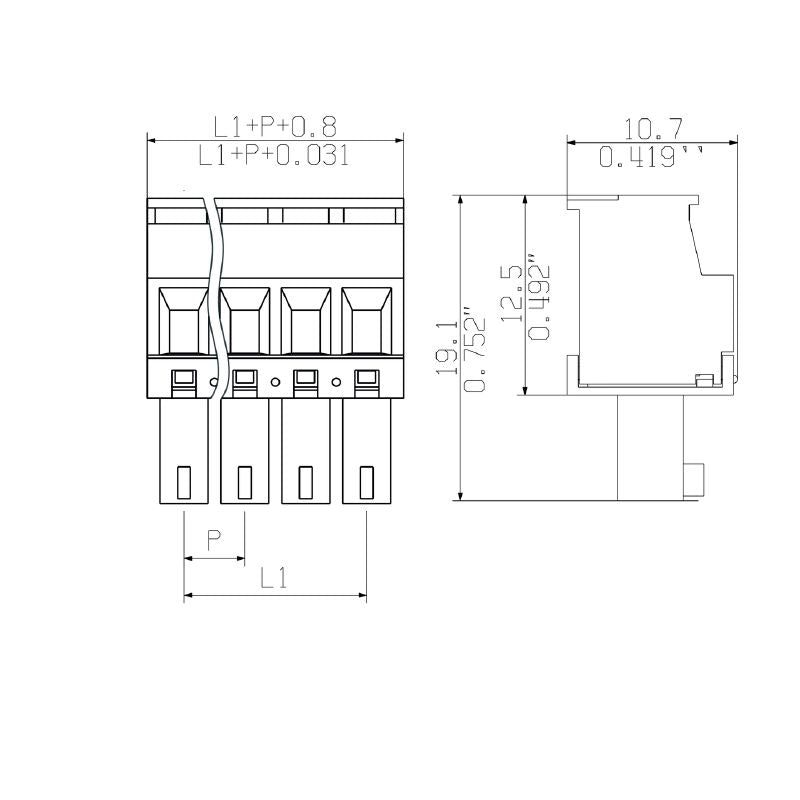

 Pitch in mm (P) 3.81 mm
 Number of poles 14
 Stripping length 6.5 mm
 Tightening torque, min. 0.22 Nm
 Tightening torque, max. 0.25 Nm
 Plugging cycles 25
 Insulating material PA
 Color Pale green
 UL 94 flammability rating V-0
 Contact base material Cu-alloy
 Rated current, min. number of poles (Tu=20°C) 8 A
 Rated voltage for surge voltage class / pollution degree II/2 320 V
 Rated voltage for surge voltage class / pollution degree III/2 160 V
 Rated voltage for surge voltage class / pollution degree III/3 160 V
 Rated impulse voltage for surge voltage class/ pollution degree II/2 2.5 kV
 Rated voltage (Use group B / UL 1059) 300 V
 Rated current (Use group B / UL 1059) 8 A
