2641990000 - 3.81mm Single Row Connector, 11 Poles, 90° Outlet (Pack of 90)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 381/11/90 SN GN BX, a professional-grade field connection component ideal for wire connections featuring a clear clamping view This connector supports a voltage rating of up to 320 V and can carry a current of 8 A, accommodating wire dimensions from 02 to 15 mm² as per IEC guidelines For those using AWG sizes, it handles up to 300 V and 8 A, suited for AWG 30 to AWG 16 wires according to UL certification.

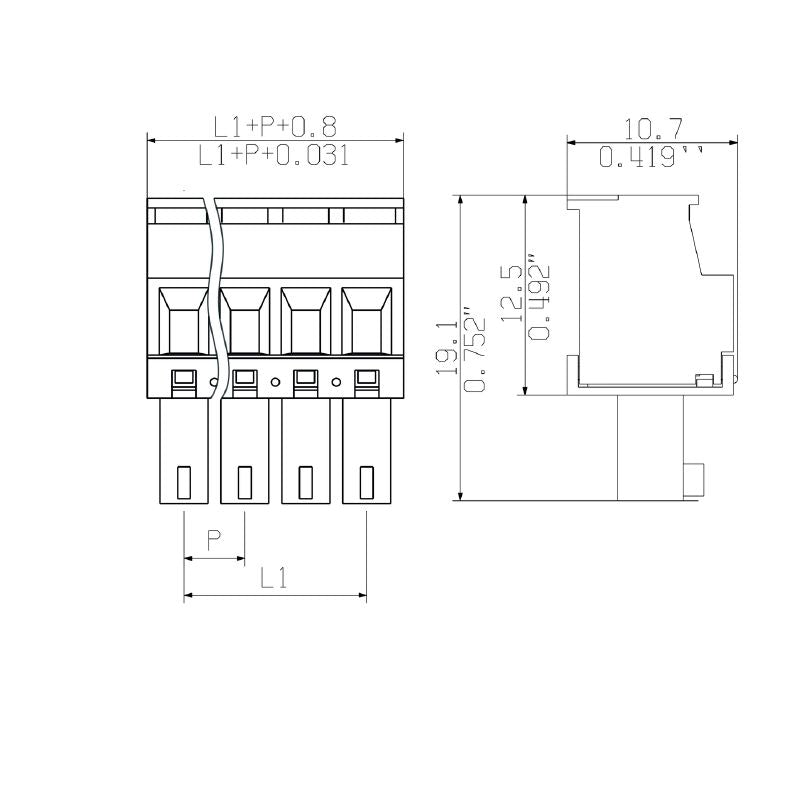

This connector boasts a compact 381 mm pitch and a 90° outlet direction It is designed as a single-row connector with a total of 11 poles, providing easy and efficient clamping connections The optimal stripping length for wires is 65 mm, and the recommended tightening torque ranges from 022 Nm to 025 Nm, ensuring a secure fit for reliable performance.

Features and Benefits:

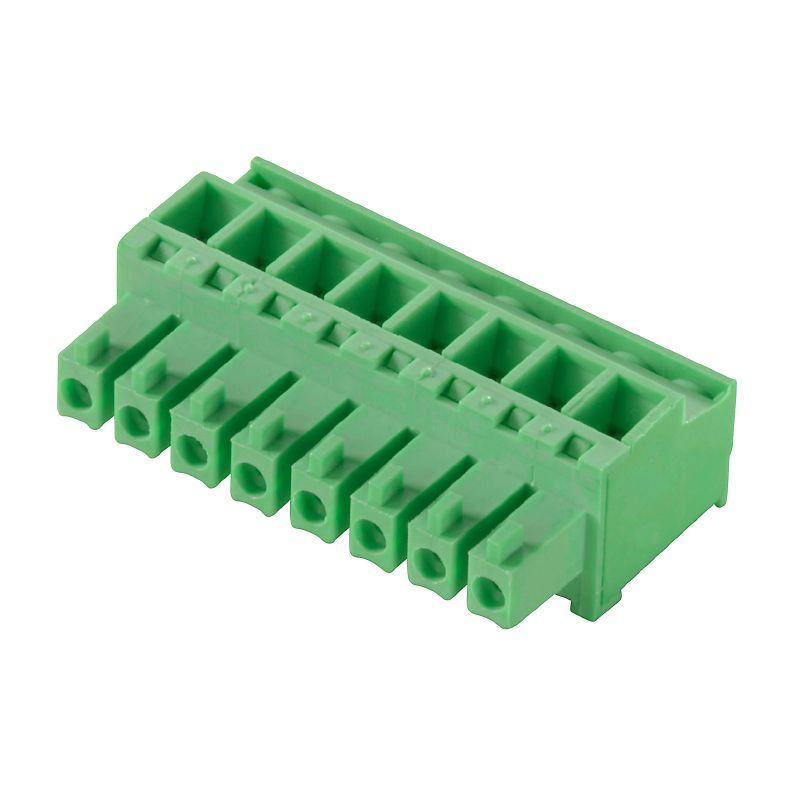

•Color: Pale green.

•Material: Insulating material is PA and the contact base material is copper alloy.

•Flammability rating: UL 94 V-0.

•Long-term storage under proper conditions lasts up to 36 months.

•Not compatible with other than OMNIMATE basic products.

Specifications:
