2641920000 - OMNIMATE Field Connection Terminal for 0.2-1.5 mm² Wires (Pack of 258)

2641920000 - OMNIMATE Field Connection Terminal for 0.2-1.5 mm² Wires (Pack of 258)

SKU: 2641920000   Download PDF

Select a Variant:
  • 2641920000 - OMNIMATE Field Connection Terminal for 0.2-1.5 mm² Wires (Pack of 258)
Qty:
Now $830.73   Web pricing policy
BEFORE   $0.00 Now $830.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience reliable connectivity with the OMNIMATE basic series CPS 381/04/90 SN GN BX This field connection component is capable of handling wire cross sections between 02 mm² and 15 mm², accommodating a variety of conductor specifications It utilizes a secure clamping yoke connection method with a single pin configuration This product operates efficiently across a temperature range from -40 °C to 70 °C, and can withstand operating conditions of up to 105 °C.

With its distinctive pale green hue, this item also meets RoHS compliance standards—ensuring both quality and environmental responsibility.

Features and Benefits:

    •General ordering number is 2641920000.

    •Rated current of 8 A and rated voltage options available are both 300 V and 320 V.

    •Insulating material is made of PA with a UL 94 flammability rating of V-0.

    •Compact dimensions allow for efficient use in limited spaces.

    •Connector type is designed specifically for OMNIMATE basic products.

Specifications:

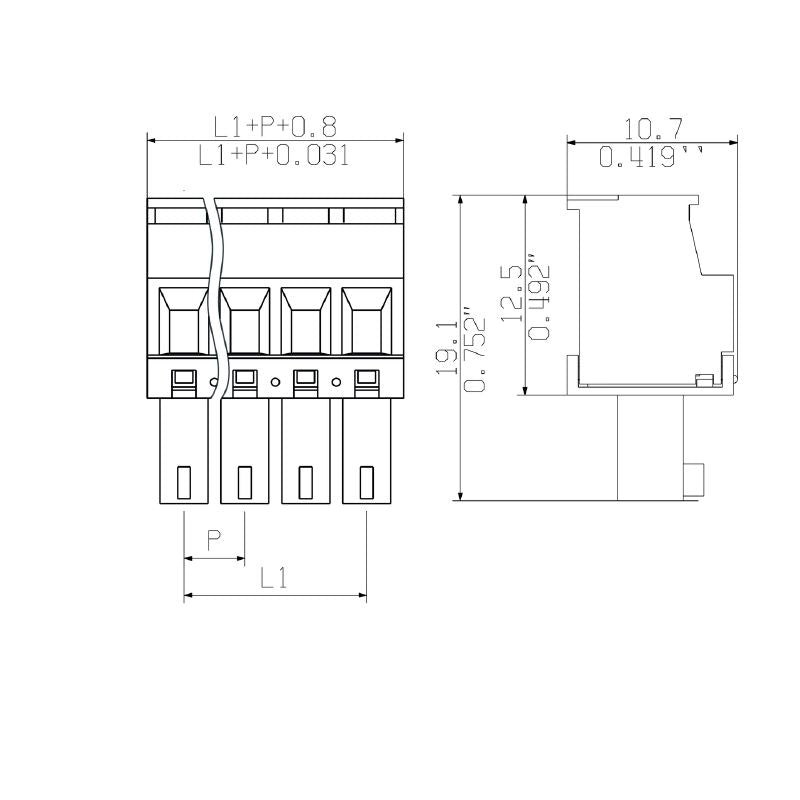

 Pitch 3.81 mm
 Number of poles 4
 Stripping length 6.5 mm
 Tightening torque (min) 0.22 Nm
 Tightening torque (max) 0.25 Nm
 Plugging cycles 25
 Pulling force/pole (max) 12 N
 Clamping range (min) 0.2 mm²
 Clamping range (max) 1.5 mm²
 Wire connection cross section AWG (min) AWG 30
 Wire connection cross section AWG (max) AWG 16
 Storage temperature (min) -40 °C
 Storage temperature (max) 70 °C
 Operating temperature (max) 105 °C
 Rated impulse voltage for surge voltage class II/3 2.5 kV
 Rated impulse voltage for surge voltage class III/2 2.5 kV
 Rated voltage for surge voltage class II/2 320 V
 Rated current (min) 8 A
 Net weight 3.16 g
