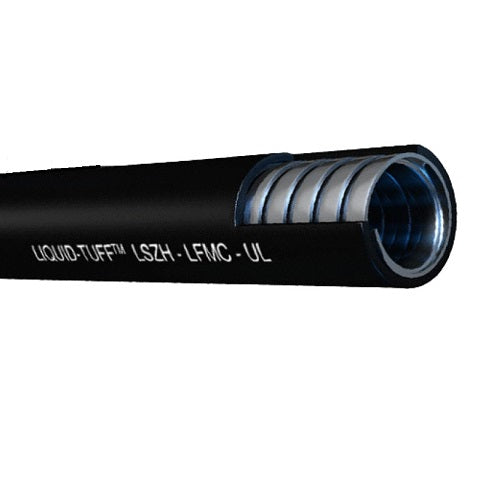

2-1/2" Trade UL And CSA LFMC Type LSZH Liquid Tight Flexible Metal Conduit TPU Jacket

2-1/2" Trade UL And CSA LFMC Type LSZH Liquid Tight Flexible Metal Conduit TPU Jacket

Applications:

• Wherever limiting toxic material of combustion is needed
• Direct burial and concrete embedment
• Bond wire for grounding in sizes 3/8“ – 11⁄4” NEC 250.118(6)
• Hazardous locations per NEC 501

Also Known As:

Type UL, Type LFMC, Type LSZH, Liquid Tight Conduit, Flexible Conduit, TPU Jacket, Flexible Metal Conduit, Low Smoke Conduit, 6708-22-00 AFC.

Description:

• Low smoke, zero halogen raceway
• Low toxicity generation characteristics
• Hot dipped zinc galvanized low carbon steel core
• Excellent temperature ratings
• Black thermoplastic polyurethane jacket
• UL copper bonding strip 3/8“ – 11⁄4” for grounding
• Sunlight resistant
• Flame retardant TPU jacket

Construction:

The LIQUID-TUFF LSZH Liquidtight Flexible Metal Conduit shall be formed from zinc coated galvanized low carbon steel strip having a uniform width and thickness. There shall be a continuous bonding strip built into the conduit core for the 3/8 through 11⁄4 trade sizes. The construction shall be in accordance with the UL 360 Standard. The Low Smoke Zero Halogen designation shall be based upon testing to ASTM 162 – Flame Spread Index, ASTM E662 – Smoke Density Generation and Bombardier SMP–800C – Toxic Gas Generation. The finished LIQUID-TUFF LSZH Liquidtight Flexible Metal Conduit dimensions shall be in accordance with Table 5.1 of UL 360

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oil resistant
• –40°C/-40°F Low Temperature

Specification:

• Trade Size: 2-1/2" inch
• Coil Length: 25ft
• Weight: 1.7640 lbs/ft
• Internal Diameter Min: 2.480 inch
• Internal Diameter Max: 2.505 inch
• External Diameter Over Conduit Min: 2.640 inch
• External Diameter Over Conduit Max: 2.675 inch
• External Diameter Over Jacket Min: 2.840 inch
• External Diameter Over Jacket Max: 2.875 inch
• Bend Radius: 14.62 inch
• Part Number: 6708-22-00
