8000051770 - IP65 48V 10A Power Supply for Closed Applications
8000051770 - IP65 48V 10A Power Supply for Closed Applications
SKU: SKU: 8000051770 Download PDF
- 8000051770 - IP65 48V 10A Power Supply for Closed Applications
- 8000051770 - IP65 48V 10A Power Supply for Closed Applications
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable power with the FieldPower power supply, engineered for use in enclosed environments This device delivers 10A of current at 48V DC and boasts an IP65 rating, ensuring protection against dust and water Compliant with RoHS standards, it features a durable construction, making it suitable for a variety of applications.
Features and Benefits:
•Compliant with RoHS and environmental regulations.
•Includes lid screws for installation.
•Protection degree rated IP65 in closed state.
Specifications:

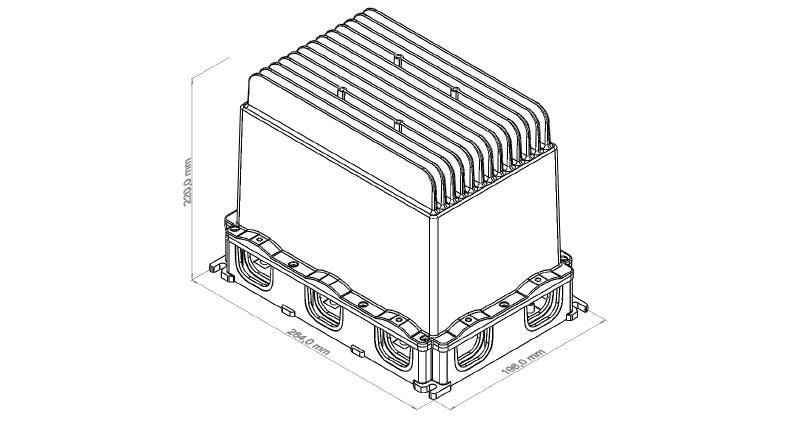

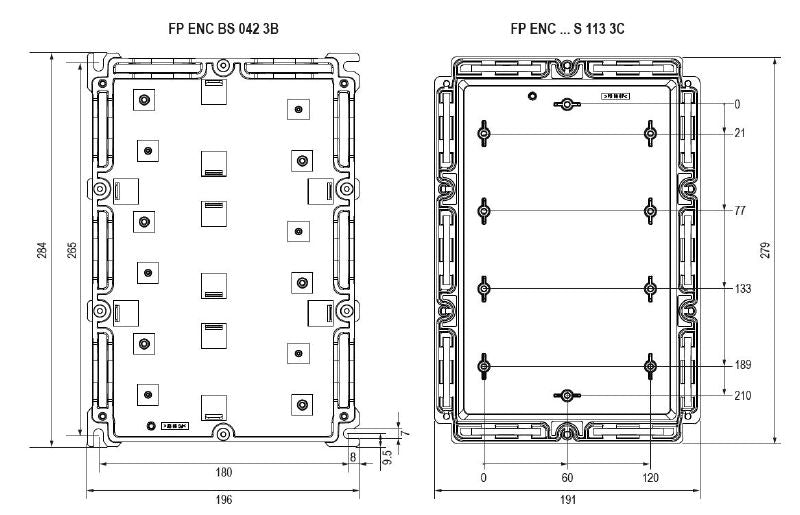

| Depth | 220 mm |
| Height | 196 mm |
| Width | 284 mm |
| Net weight | 5,841 g |
| Operating temperature range | -25...50 ℃ |
| Storage temperature | -40 °C to 85 °C |
| Humidity | 35…85%, non condensing and non freezing |
| Surge protection | Varistor |
| Rated output voltage | 48 V DC ± 1 % |
| Output current | 10 A |

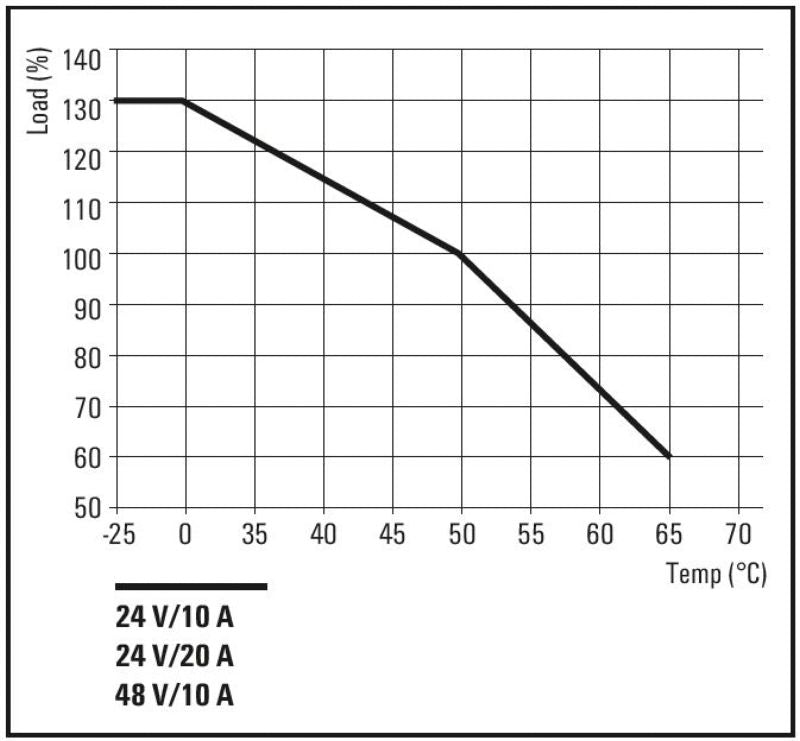

| Nominal output current for U nom | 10 A @ 60 °C |
| Input fuse (internal) | Yes |
| Inrush current | max. 5 A |
