Description:

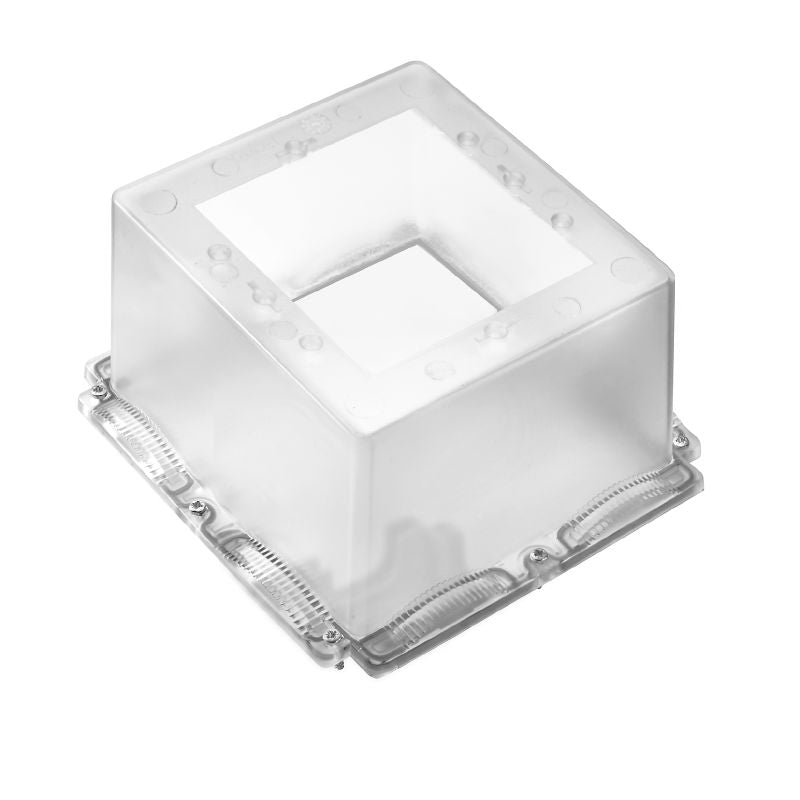

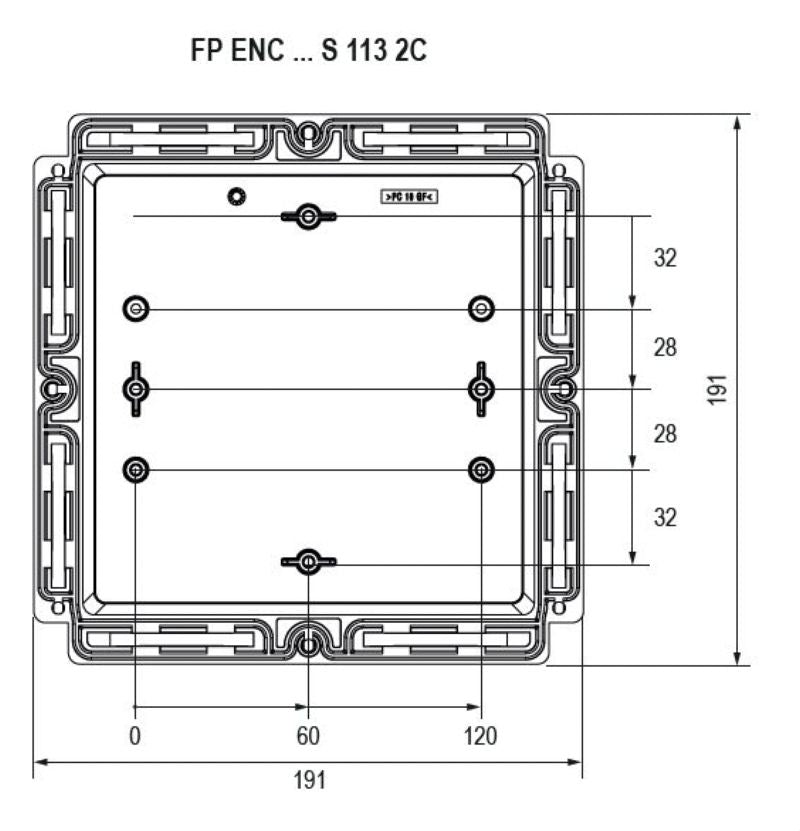

The FieldPower enclosures measure 191 mm x 191 mm x 113 mm and provide robust IP65 protection when fully assembled, ensuring reliable performance in various conditions Crafted from transparent polycarbonate, these enclosures offer exceptional strength while allowing visibility of internal components They adhere to RoHS standards and feature a UL 94 flammability rating of V-0, guaranteeing safety and compliance for your applications.
Features and Benefits:
•Transparent polycarbonate material for visibility.
•IP65 protection degree in complete state.
•Compliant with RoHS without exemptions.
•Includes lid screws for installation.
Specifications:
| Depth (mm): | 113 |
| Height (mm): | 191 |
| Width (mm): | 191 |
| Operating temperature: | -40 °C to 85 °C |
| Storage temperature: | -40 °C to 85 °C |
| Basic material: | Polycarbonate |
| Enclosure material: | Polycarbonate |
| Protection degree: | IP65 |
| UL 94 flammability rating: | V-0 |
| Torque for lid screws: | 2 Nm |
